Magnum V8-5.7L (2008)
Knock Sensor: Locations
Sensor-Knock 1

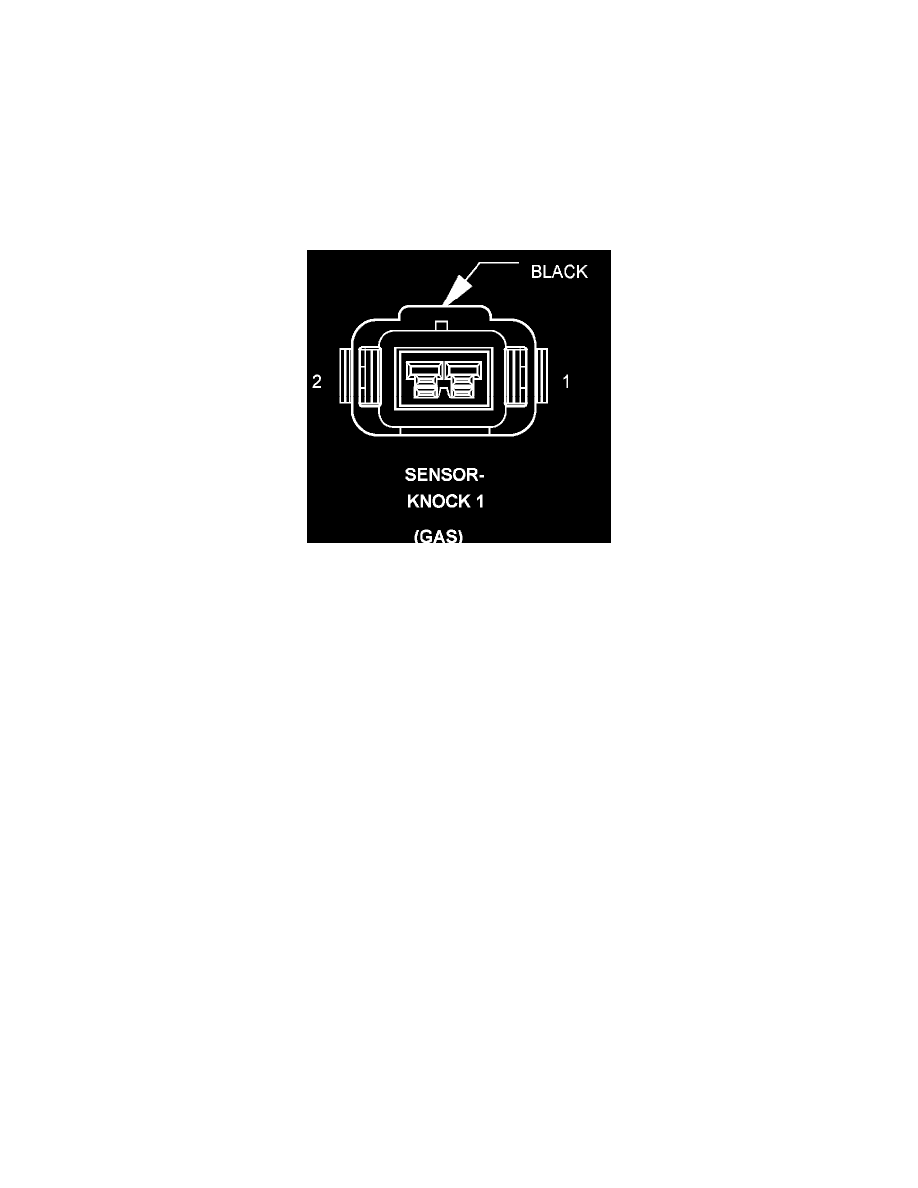

Component ID:
512
Component :
SENSOR-KNOCK 1
Connector:
Name :
SENSOR-KNOCK 1
Color :
BLACK
# of pins :
2
Qualifier :
(GAS)
Pin
Circuit
Description
1
K942 20BR/LG
KS 1 RETURN
2
K42 20DB/YL
KS 1 SIGNAL
Component Location - 17
