Magnum V8-5.7L (2008)
Valve Body: Description and Operation
Description
DESCRIPTION

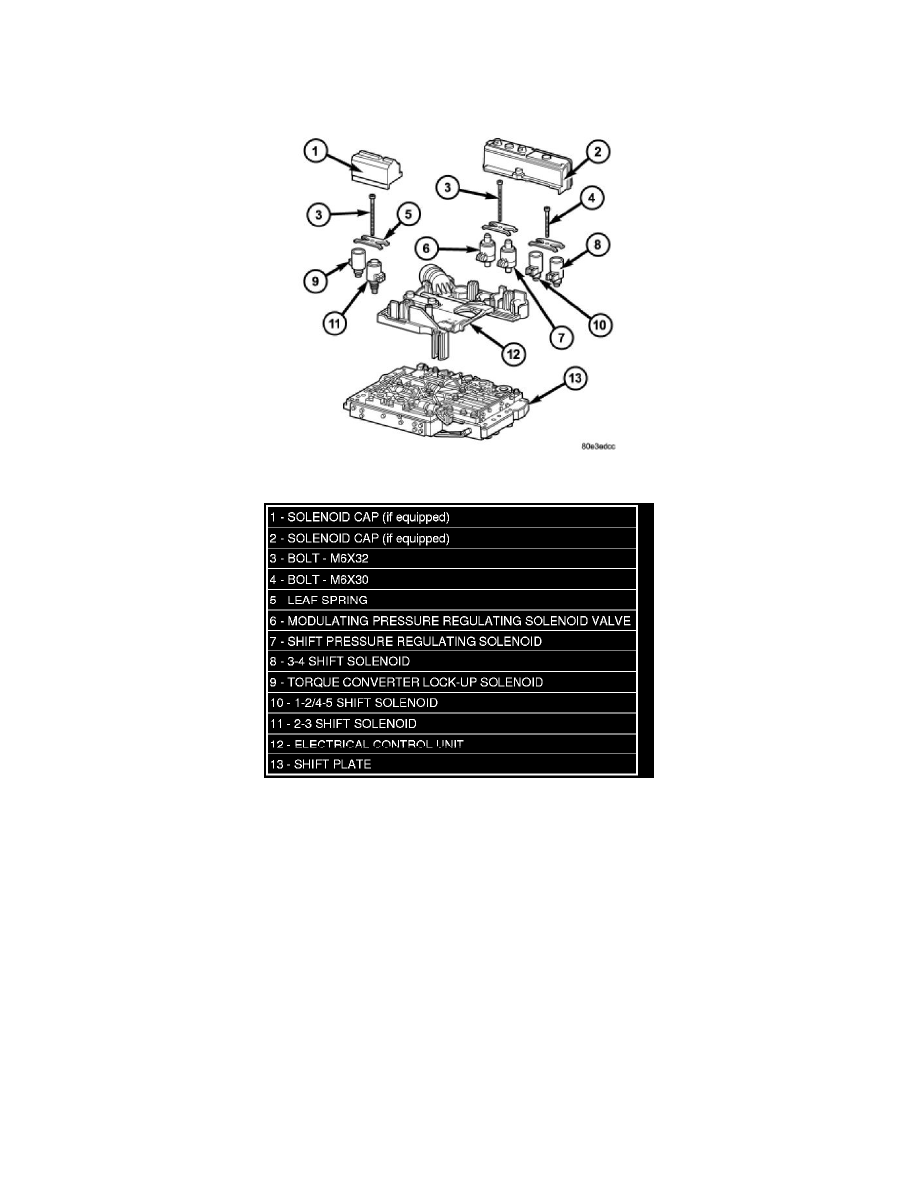

Electrical Unit Components
The electrohydraulic control unit comprises the shift plate (13) made from light alloy for the hydraulic control and an electrical control unit (12). The
electrical control unit (12) comprises of a supporting body made of plastic, into which the electrical components (1 - 11) are assembled. The supporting
body is mounted on the shift plate (13) and screwed to it.
Strip conductors inserted into the supporting body make the connection between the electrical components and a plug connector. The connection to the
wiring harness on the vehicle and the transmission control module (TCM) is produced via this 13-pin plug connector with a bayonet lock.
ELECTRICAL CONTROL UNIT
