Magnum V8-5.7L VIN 2 (2007)
Air Duct: Service and Repair
Outlets-Air
Air Outlet - Dodge
AIR OUTLET - DODGE
NOTE: Only the outboard passenger side instrument panel air outlet can be serviced separately.
NOTE: LHD model shown in illustrations. RHD model similar.

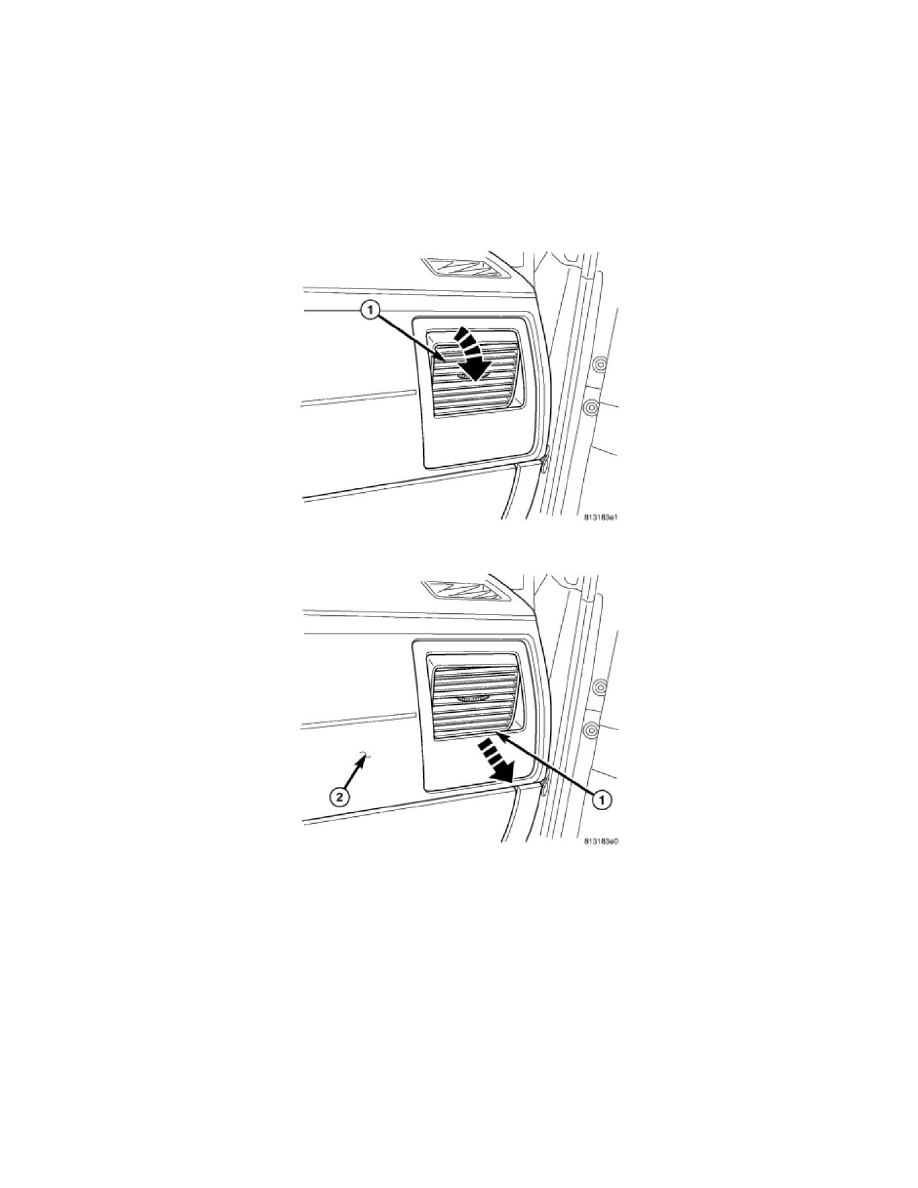

1. Rotate the top of the outboard passenger side air outlet barrel (1) downwards.
2. Gently pull out on the bottom edge of the air outlet (1) to release the snap clip retainers that secure the outlet to the instrument panel (2).
3. Remove the air outlet from the instrument panel.
Air Outlet Barrels - Dodge
AIR OUTLET BARRELS - DODGE
NOTE: The instrument panel air outlet barrels are retained to the pivots within the air outlets by a snap fit.
