Magnum V8-5.7L VIN 2 (2007)
11. Remove the A/C expansion valve from the evaporator tube tapping block and foam seal.
12. Remove the O-ring seals from the evaporator tube fittings and discard.
13. Install plugs in, or tape over the opened evaporator tube fittings and all expansion valve ports.
14. Remove the HVAC wiring harness (1).

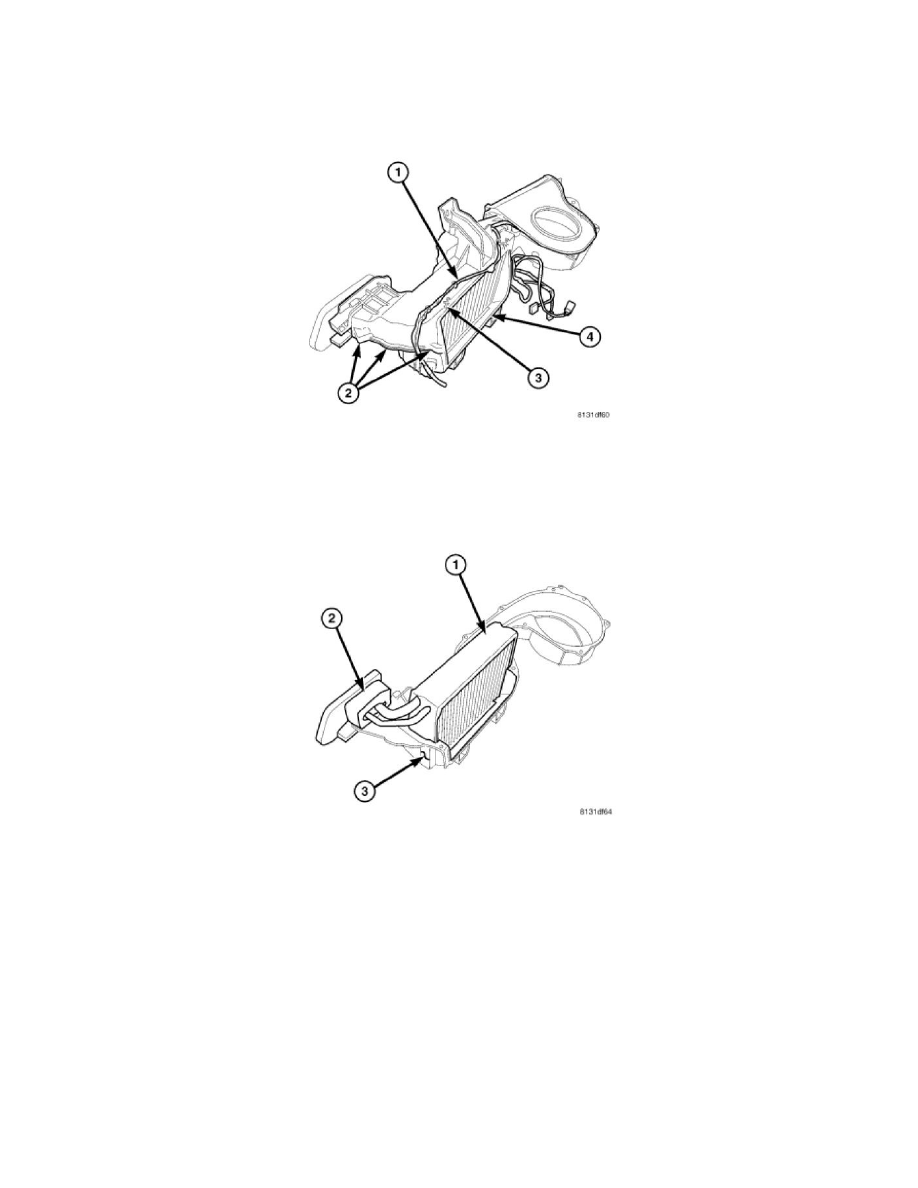

15. Remove the ten screws (2) that secure the upper half of the HVAC housing (3) to the lower half of the HVAC housing (4).
16. Separate the two halves of the HVAC housing.
17. Carefully lift the A/C evaporator (1) and foam seal (2) out of the lower half of the HVAC housing (3).
18. If required, remove the foam seal from the tapping block of the A/C evaporator. If the seal is deformed or damaged, it must be replaced.
Air Distribution Housing
HOUSING-AIR DISTRIBUTION
NOTE: The air distribution housing must be removed from the HVAC housing and disassembled for service of the mode-air and blend-air doors.
NOTE: LHD model shown in illustrations. RHD model similar.
