Magnum V8-5.7L VIN 2 (2007)

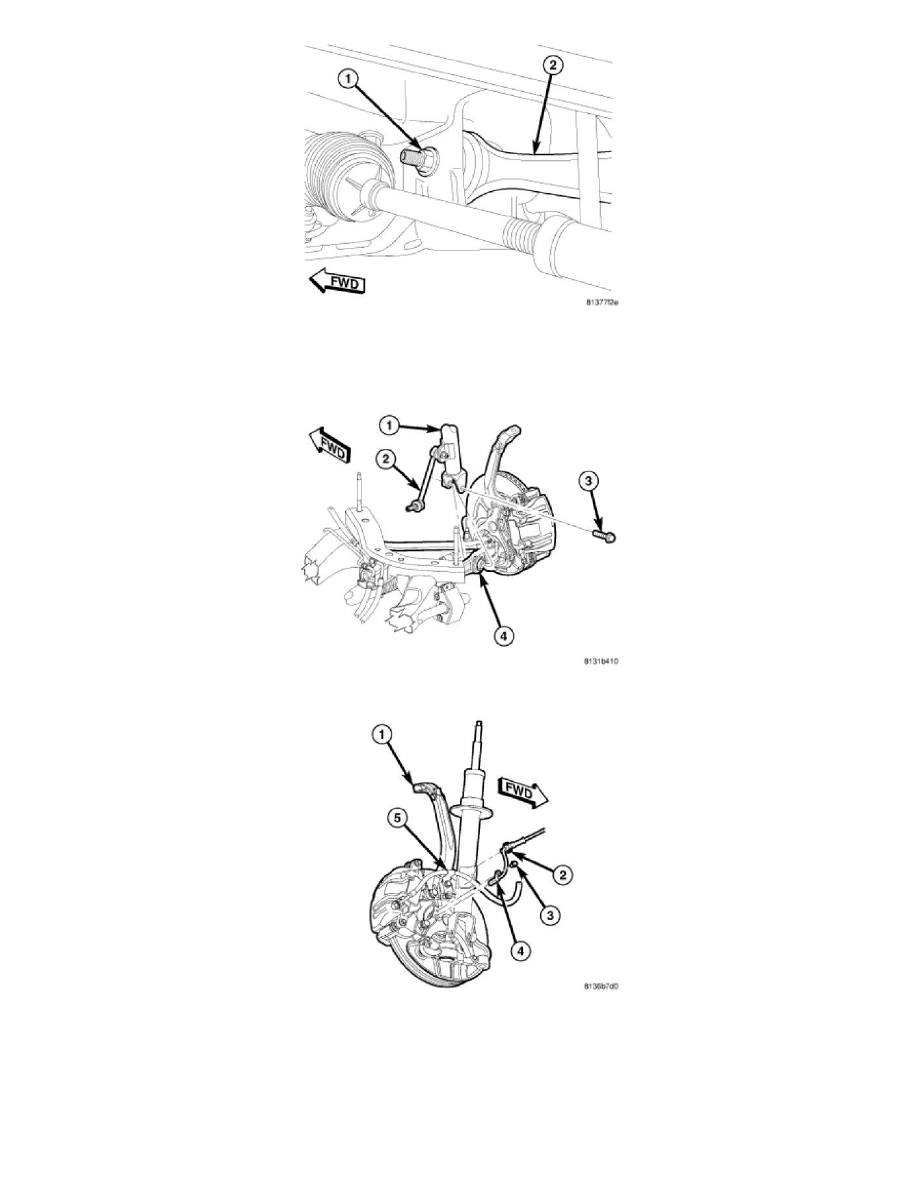

8. Remove bolt and nut (1) securing lower control arm (2) to engine cradle. If bolt has a lengthwise grooved shaft (see above note), remove bolt and
nut by holding the bolt in place with a wrench, removing nut, then sliding bolt out of bushing and cradle while taking note of bolt positioning in
lower control arm bushing for reassembly purposes.
9. Remove bolt (3) securing shock assembly (1) to lower control arm (4).
10. Remove screw (3) fastening wheel speed sensor to knuckle (1). Pull sensor head (4) out of knuckle.
11. Remove wheel speed sensor cable routing clip (2) from brake flex hose routing bracket (5).
