Magnum V8-5.7L VIN H (2005)
Tie Rod: Service and Repair
Inner Tie Rod
Inner Tie Rod
Removal
1. Remove outer tie rod.
2. Remove tie rod jam nut from inner tie rod.

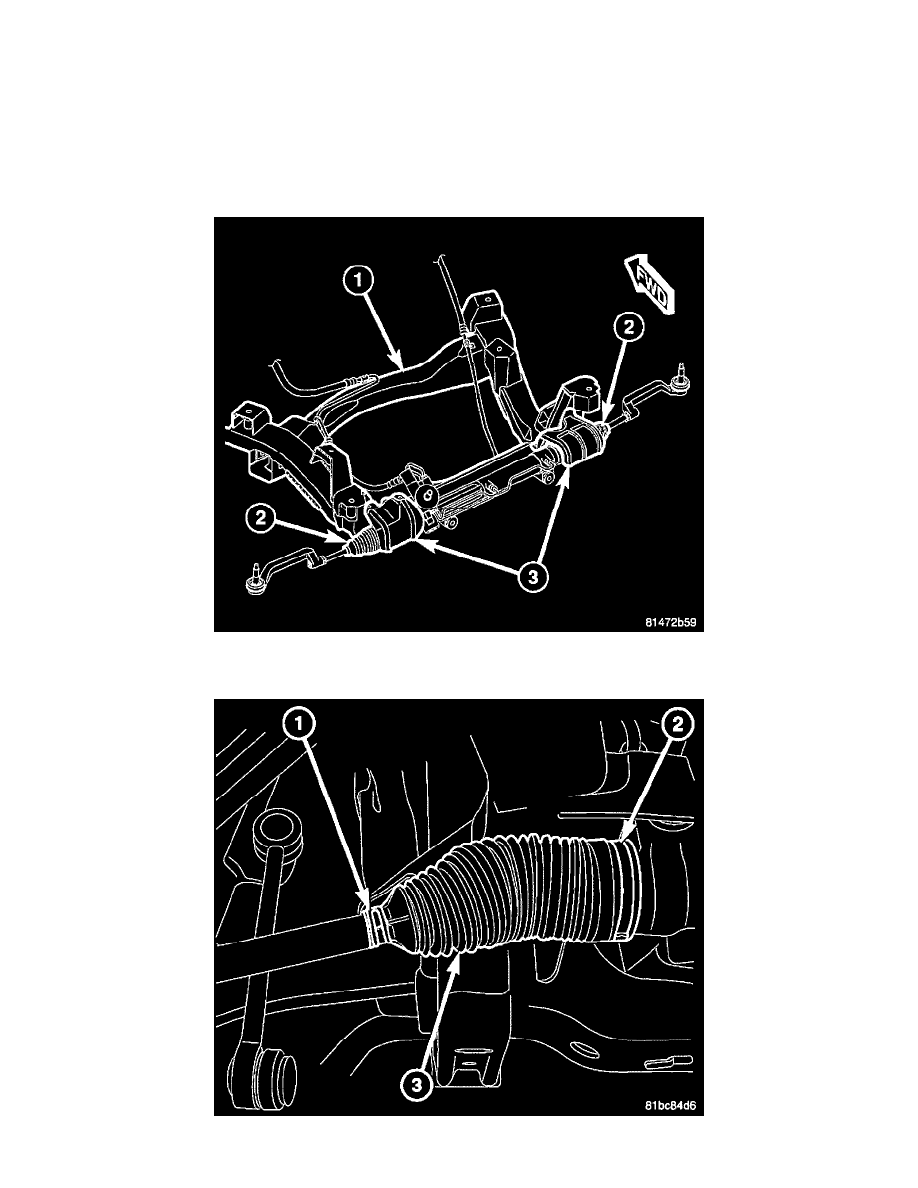

Note: If equipped with All-Wheel-Drive, it may be necessary to remove heat shield (3) above inner tie rod bellows (2) to allow better access to bellows
clamp.
3. Remove clamp (1) securing bellows (3) to inner tie rod.
