Magnum V8-5.7L VIN H (2005)

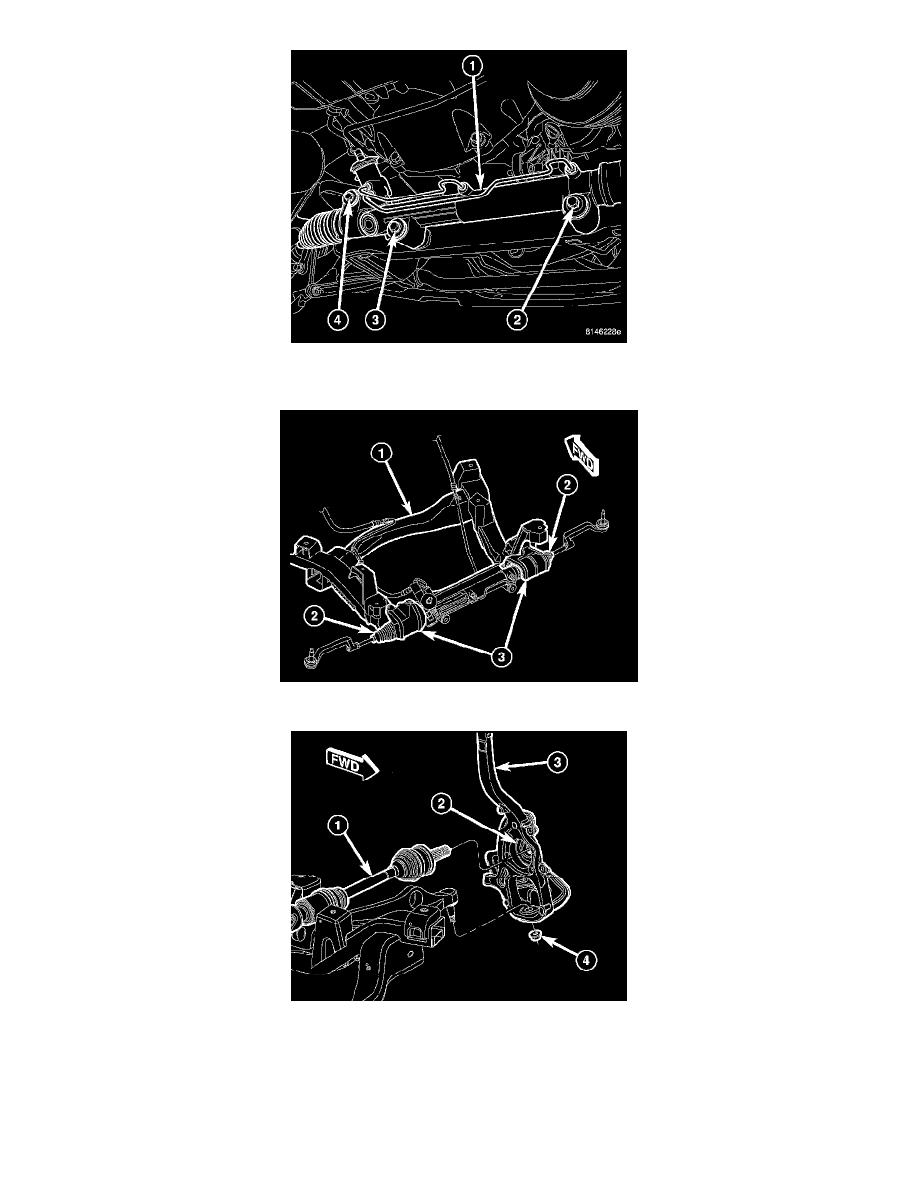

3. Raise steering gear to mounted position and install lower mounting bolts (2 and 3). Install upper mounting bolt (4) and nut. Tighten all mounting
bolts to 122 Nm (90 ft. lbs.) torque.
4. Install heat shields (3) above both inner tie rod bellows (2). Tighten mounting screws to 7 Nm (62 inch lbs.) torque.
5. Pull downward on control arm and guide ball joint stud into knuckle (3). Install NEW nut (4) on ball joint stud. Tighten nut by holding ball joint
stud with a hex wrench while turning nut with a wrench. Tighten nut using crow foot wrench on torque wrench to 122 Nm (90 ft. lbs.) torque.
