Nitro 2WD V6-4.0L (2007)
Flywheel: Description and Operation
DESCRIPTION
DUAL MASS FLYWHEEL

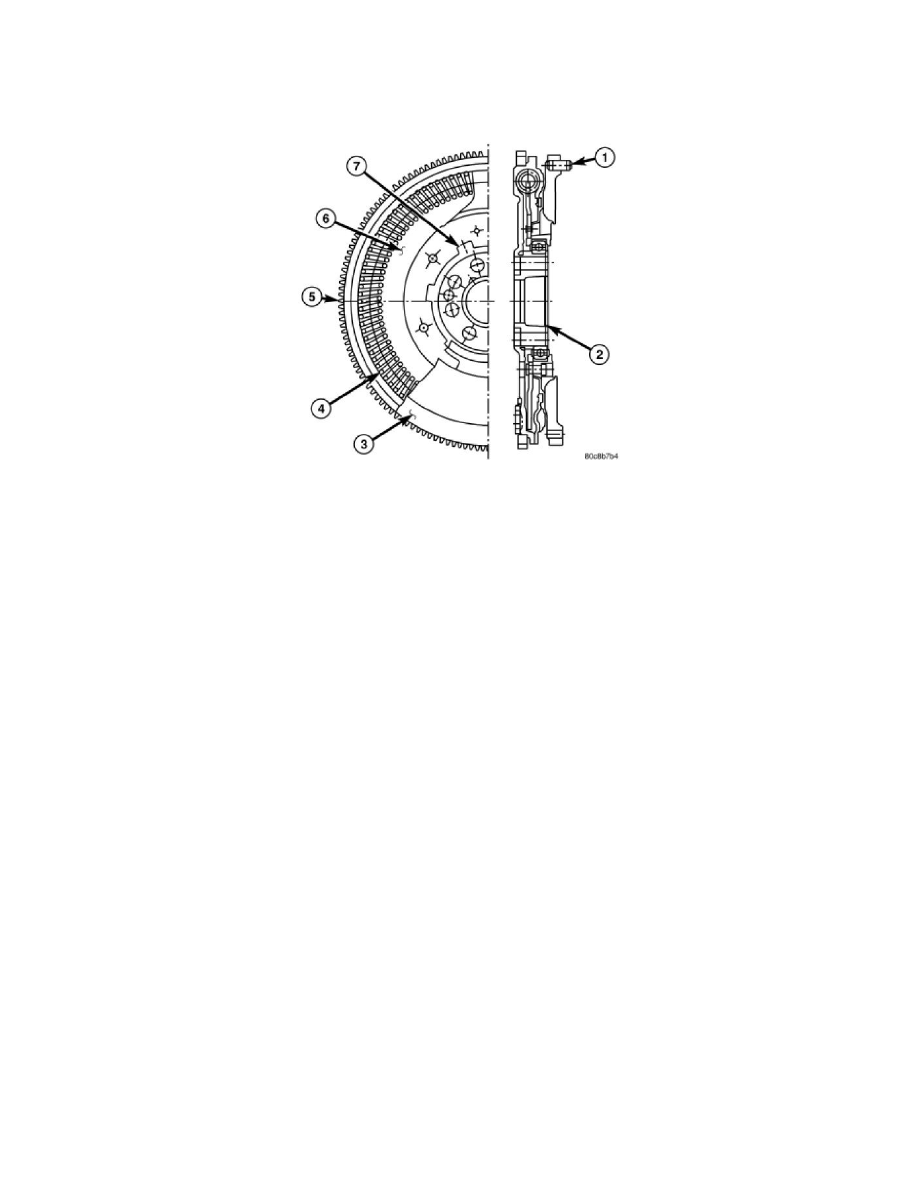

The Dual Mass Flywheel is used on all engines. The flywheel incorporates the ring gear (5) around the outer circumference to mesh with the starter to
permit engine cranking. The primary flywheel (6) side is bolted to the crankshaft. The secondary flywheel (3) side serves as the driving member to the
clutch disc. Internal springs (4) between the flywheels are use to dampen energy. The Dual Mass Flywheel is serviced as an assembly only and should
never be taken apart.
