RAM 1500 Van V6-239 3.9L Magnum (1995)
Trim Panel: Service and Repair
Interior Moulding / Trim
Ram Van and Wagon interior trim panels are comprised of the:
-
cowl side trim panels and front wheelhouse trim panels;
-
windshield header A-pillar and front door header trim panels;
-
side cargo door header and pillar trim panels;
-
side upper trim panels;
-
rear cargo door header trim panel; and
-
side lower trim panels.
The interior trim panels and mouldings are attached to the body panels with screws and/or retainer clips. The scuff plates are attached to the stepwells
with screws.
CAUTION: Do not attempt to remove trim panels/mouldings without first removing/loosening (as applicable) overlapping adjacent panels and other
interfering components. Also, to avoid damage, ensure that all the screws and retainer clips are removed before attempting to remove a trim panel or
moulding. Trim panels are somewhat flexible but can be damaged if handled improperly.

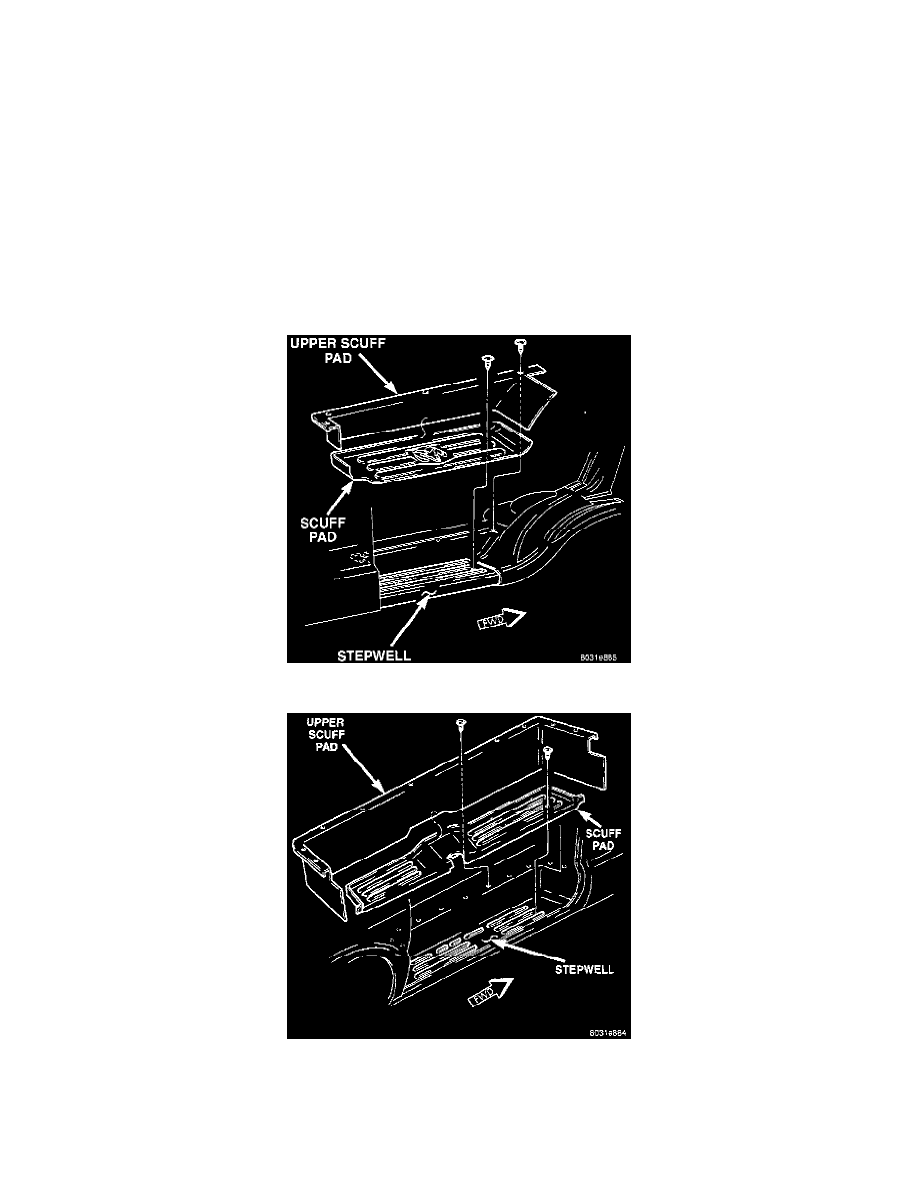

Front Door Scuff Pad
Dual Cargo Door Scuff Pad
