RAM 2500 Truck 4WD V8-5.9L VIN Z LDC (1998)
Console: Service and Repair
Compass and Thermometer Display Module Replacement
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the overhead console from the head-liner. See Overhead Console in the Replacement for the procedures.

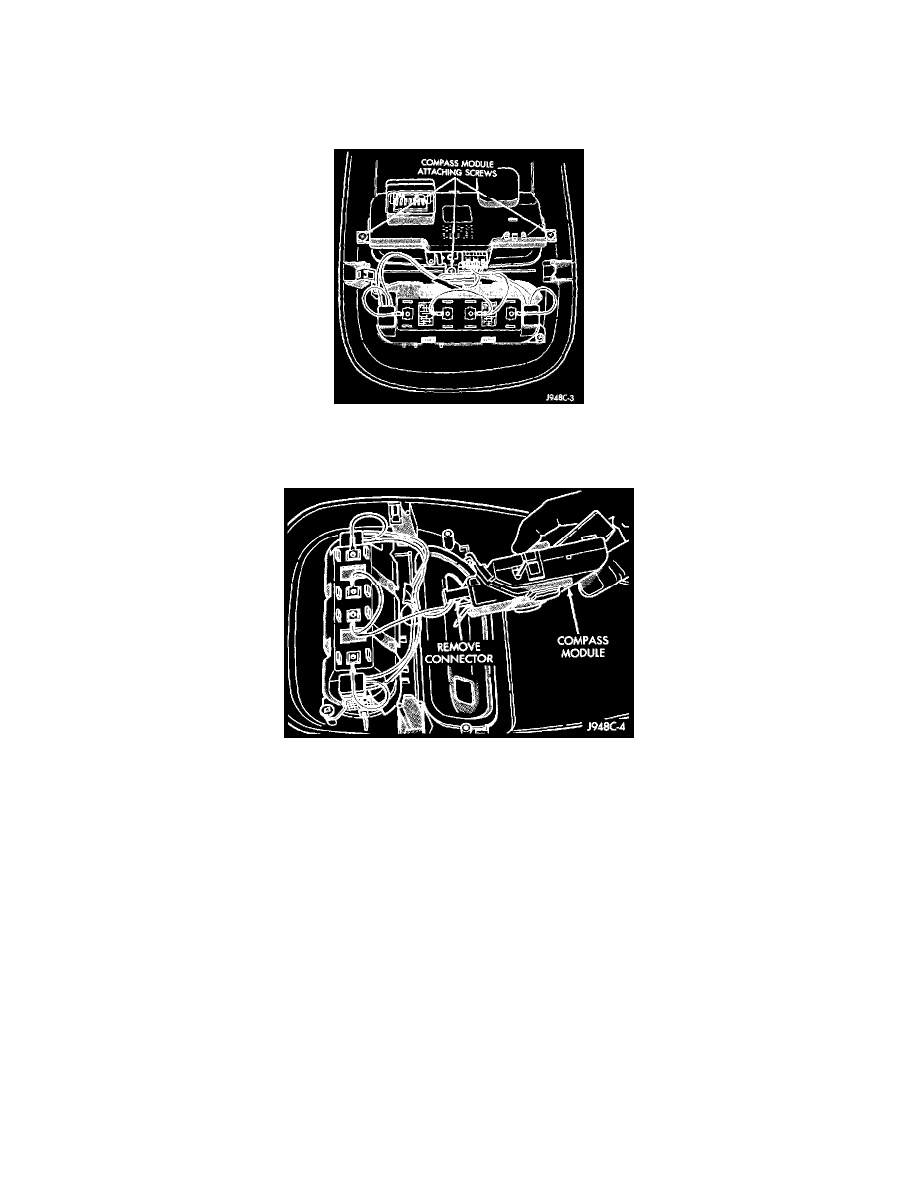

Compass And Thermometer Display Module Remove/Install
3. Remove the three screws that secure the compass and thermometer display module to the overhead console housing.
Lighting Wire Harness Connector
4. Unplug the lighting wire harness connector from the compass and thermometer display module.
5. Remove the compass and thermometer display module from the overhead console housing.
6. Reverse the removal procedures to install. Tighten the mounting screws to 2.2 N.m (20 in. lbs.).
