RAM 2500 Truck 4WD V8-5.9L VIN Z LDC (1998)

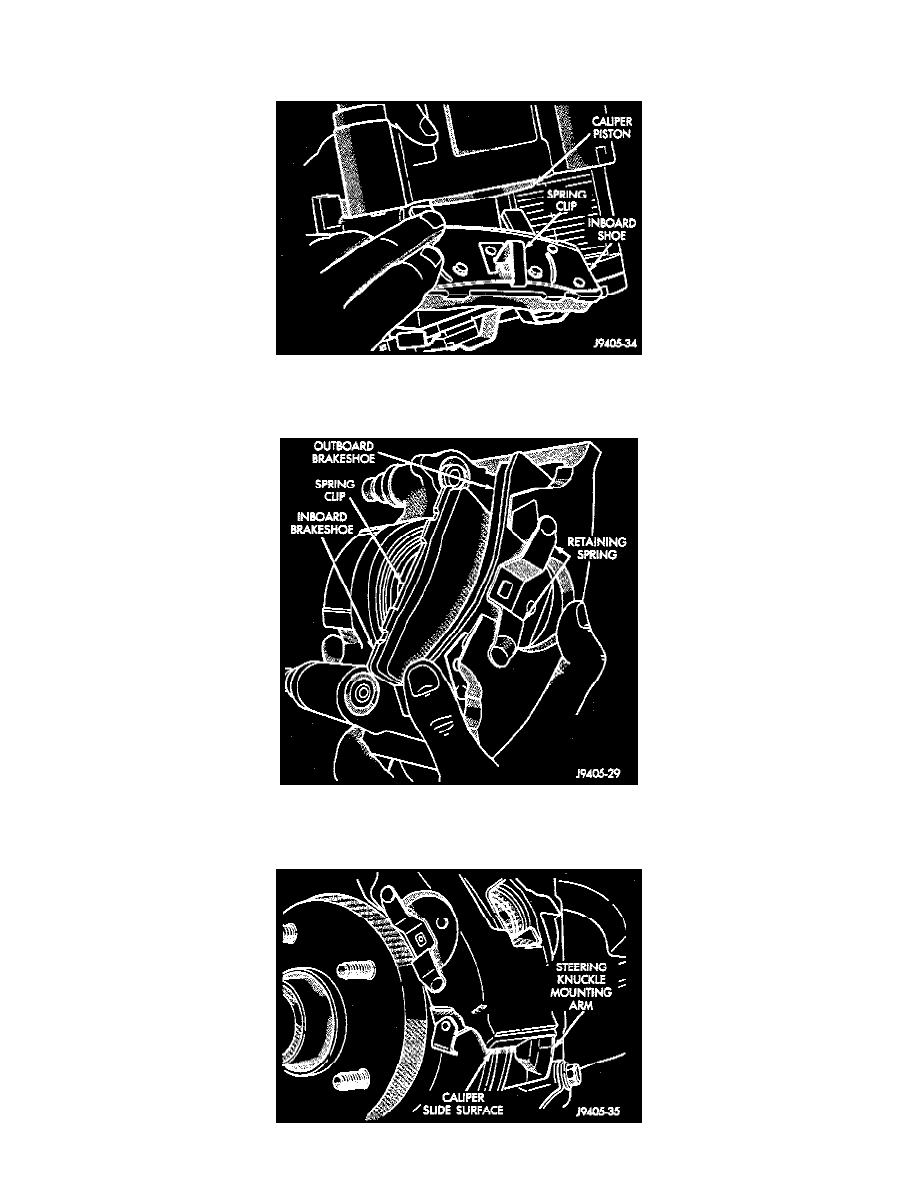

Mounting Bolt Lubrication (80 Or 86mm Caliper)
-
3/4 and 1 ton models with 80 or 86 mm calipers, coat mounting pin and interior of bushing with silicone grease.
Inboard Brake Shoe Installation
3. Install inboard brake shoe in caliper. Be sure spring clip on shoe is properly aligned and seated in caliper piston.
Brake Shoe Position In Caliper
4. Install outboard brake shoe in caliper. Be sure spring ends are seated in dimples in caliper.
