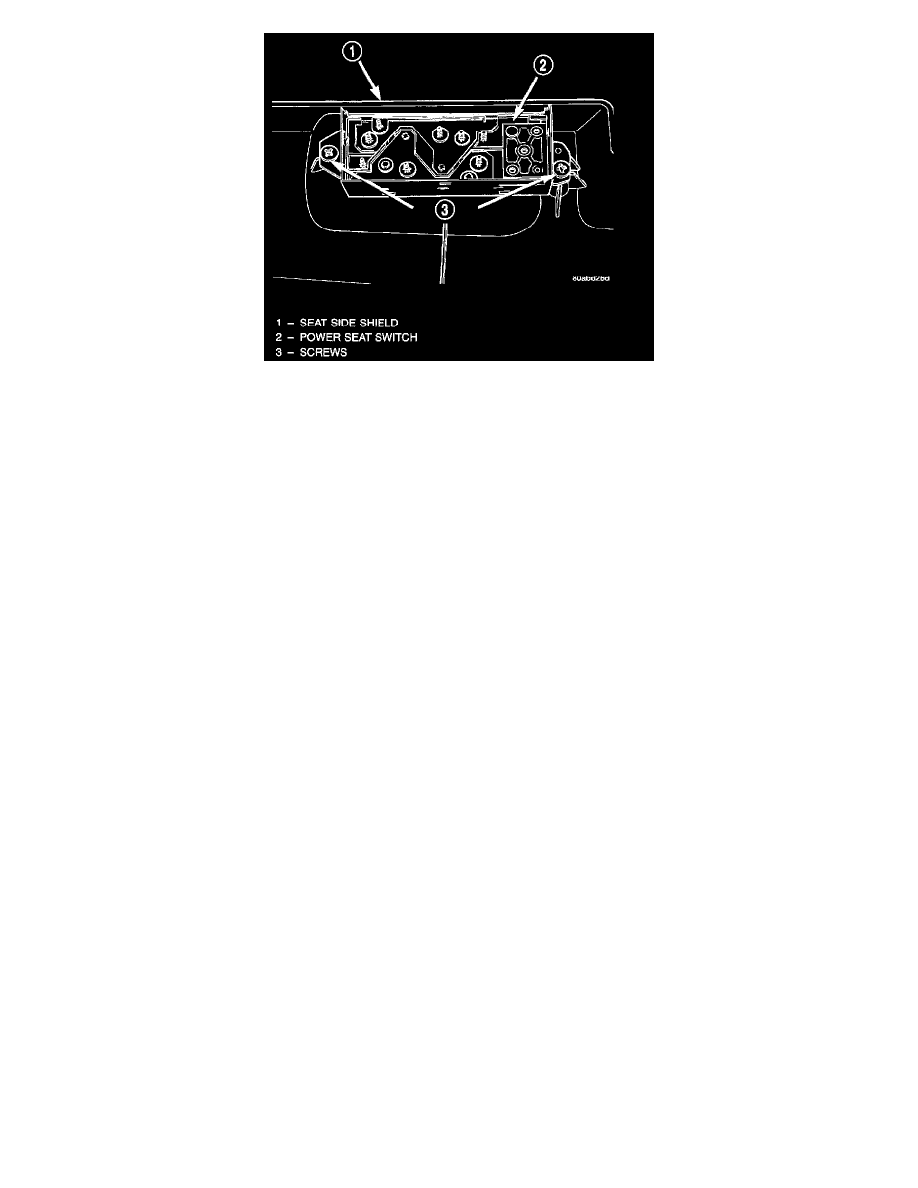

Power Seat Switch Remove/Install - Typical

8. Remove the two screws that secure the power seat switch to the inside of the seat cushion side shield.
9. Remove the power seat switch from the seat cushion side shield.

10. Reverse the removal procedures to install. Tighten the switch mounting screws to 2.2 N.m (20 in. lbs.).
