RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)
Powertrain Control Module: Service and Repair

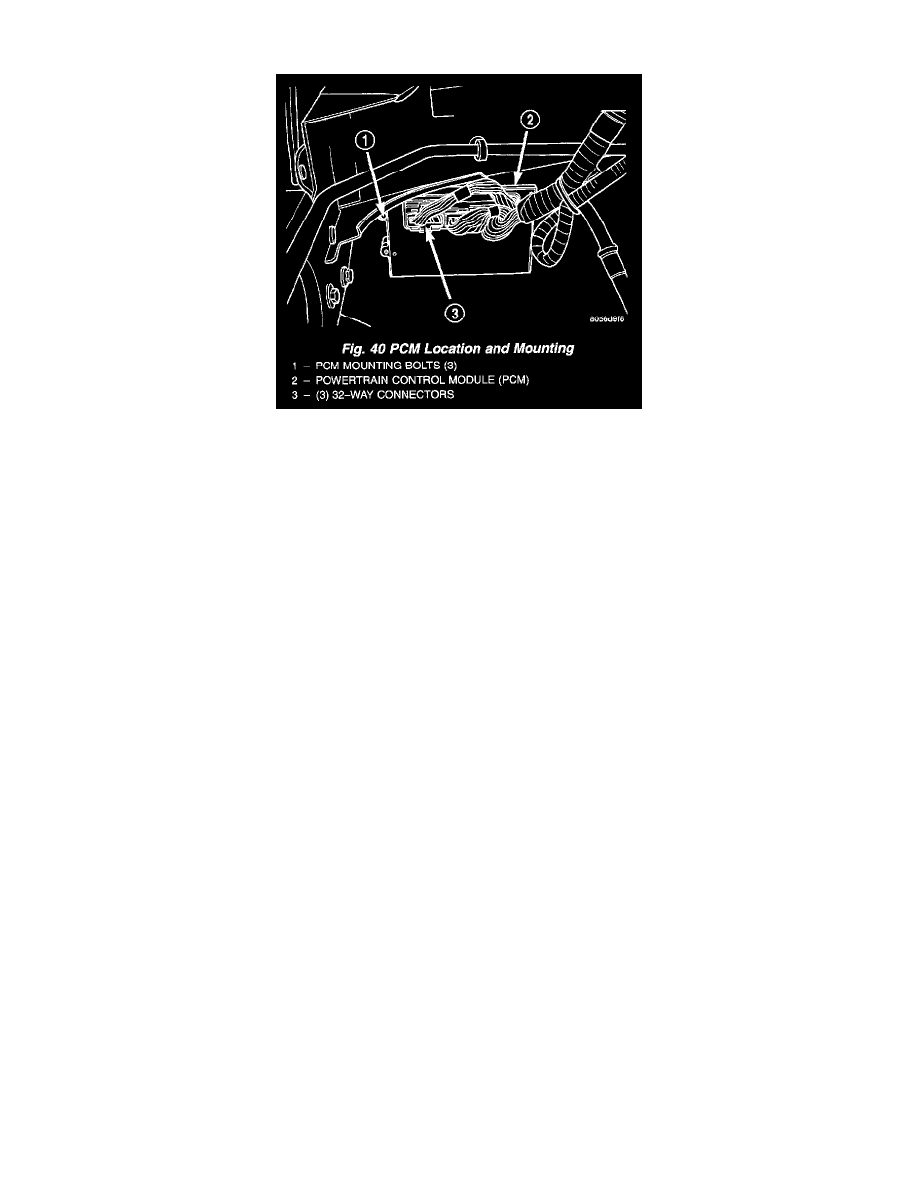

Fig. 40 PCM Location And Mounting
The Powertrain Control Module (PCM) is located in the engine compartment.
REMOVAL
The avoid possible voltage spike damage to the PCM, ignition key must be OFF, and negative battery cable must be disconnected before unplugging
PCM connectors.
1. Disconnect negative battery cable(s) at battery(s).
2. Remove cover over electrical connectors. Cover is naps onto PCM.
3. Carefully unplug the three 32-way connectors from PCM.
4. Remove three PCM mounting bolts and remove PCM from vehicle.
INSTALLATION
1. Install PCM and mounting bolts to vehicle.
2. Tighten bolts to 4 Nm (35 in. lbs.).
3. Check pin connectors in the PCM and the three 32-way connectors for corrosion or damage. Repair as necessary.
4. Install three 32-way connectors.
5. Install cover over electrical connectors. Cover snaps onto PCM.
6. Install battery cable(s).
7. Use the DRB scan tool to reprogram new PCM with Vehicles Original Identification Number (VIN) and original vehicle mileage. If this step is not
done, a Diagnostic Trouble Code (DTC) may be set.
PCM VIN REPROGRAMMING
USE THE DRB III SCAN TOOL TO REPROGRAM THE NEW POWERTRAIN CONTROL MODULE (PCM) WITH THE VEHICLES
ORIGINAL IDENTIFICATION NUMBER (VIN) AND THE VEHICLES ORIGINAL MILEAGE. IF THIS STEP IS NOT DONE, A
DIAGNOSTIC TROUBLE CODE (DTC) MAY BE SET.
