RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)
Camshaft Position Sensor: Service and Repair
Removal and Installation - Using Original Sensor

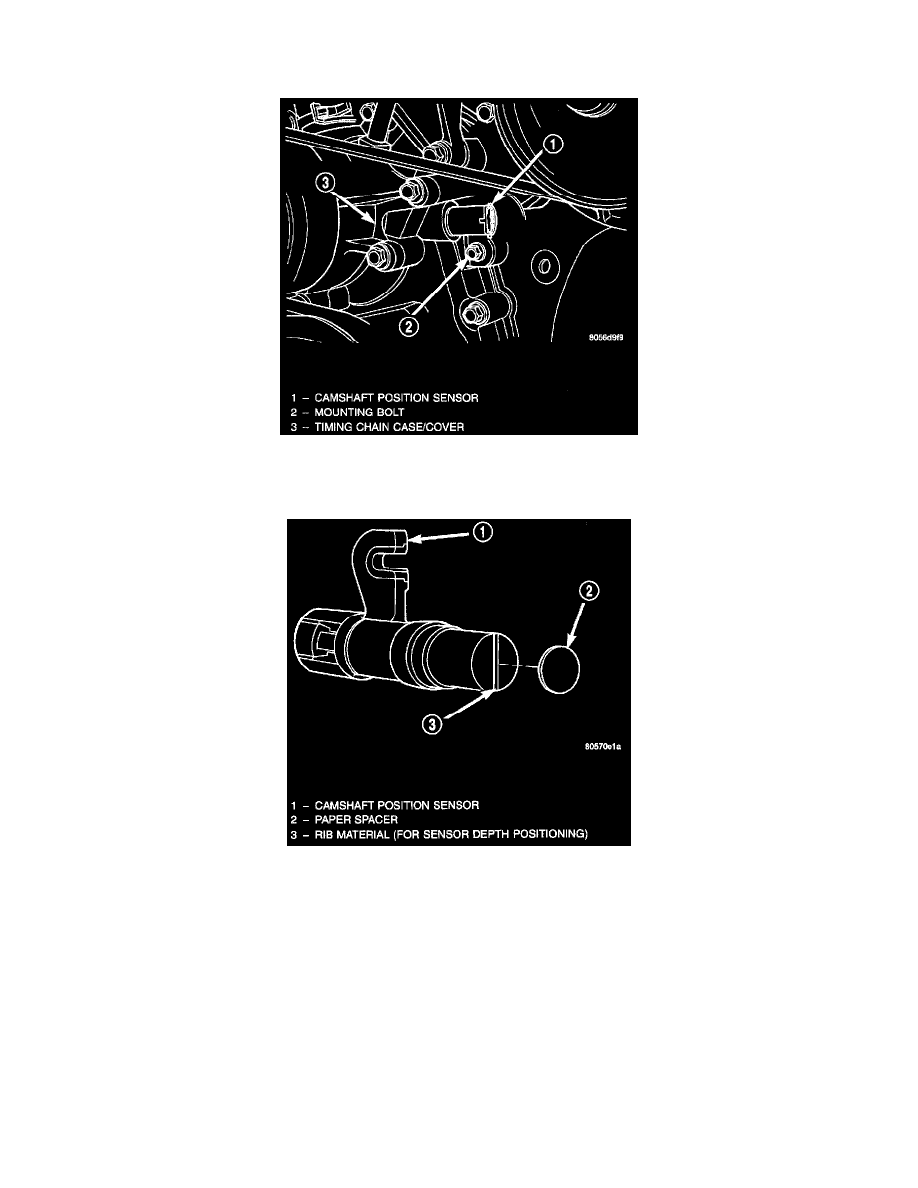

Camshaft Position Sensor Location
The Camshaft Position Sensor is located on the timing chain case/cover on the left-front side of the engine.
Sensor Depth Positioning Rib
A thin plastic rib is molded into the face of the sensor to position the depth of sensor to the upper cam gear (sprocket). This rib can be found on both the
new replacement sensors and sensors that were originally installed to the engine. The first time the engine has been operated, part of this rib may be
sheared (ground) off. Depending on parts tolerances, some of the rib material may still be observed after removal.
REMOVAL
If the original Camshaft Position Sensor is to be removed and installed, such as when servicing the timing chain, timing gears or timing chain cover,
use this procedure.
1. Disconnect the sensor harness connector from the sensor.
2. Remove the sensor mounting bolt.
3. Carefully pry the sensor from the timing chain case/cover in a rocking action with two small screwdrivers.
4. Remove the sensor from vehicle.
