RAM 3500 Truck 2WD V10-8.0L VIN W HDC (2000)

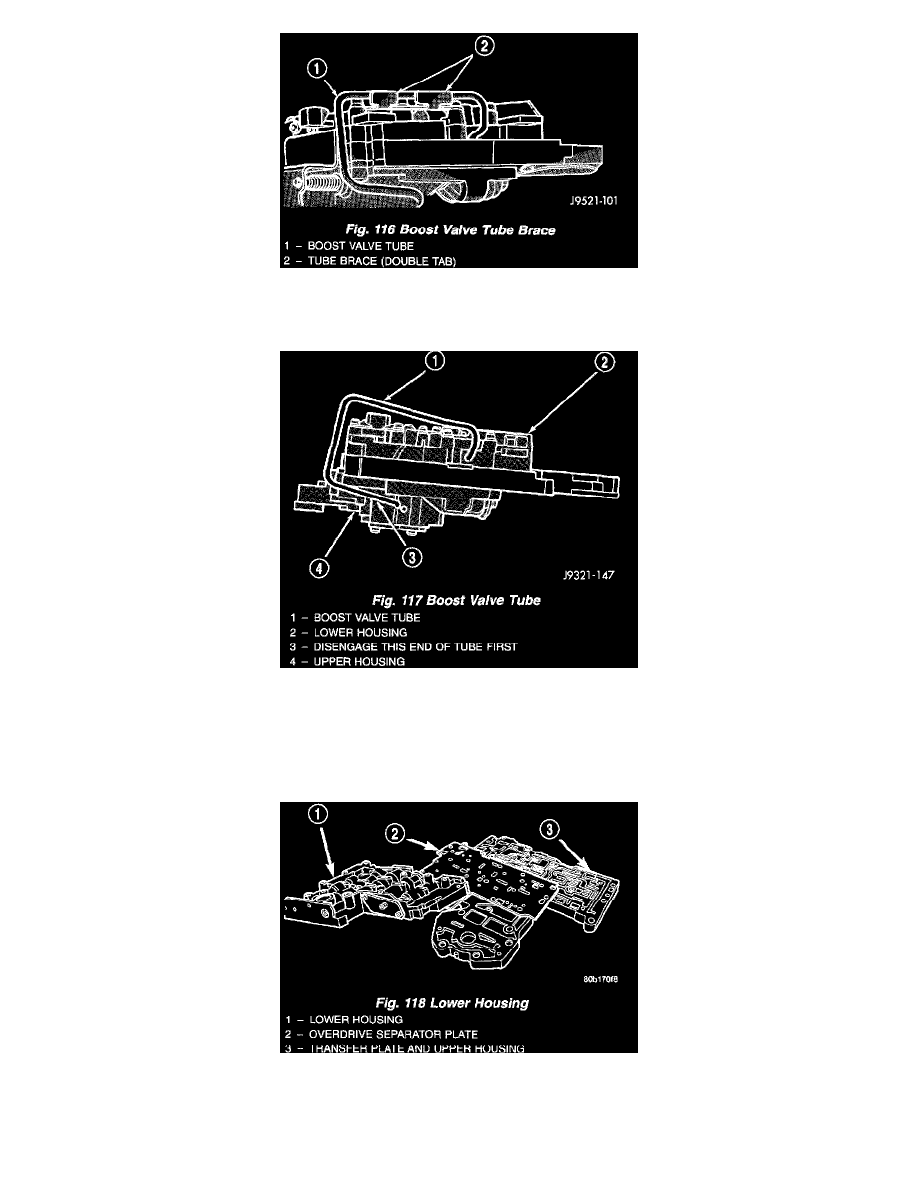

Fig. 116
25. Bend back tabs on boost valve tube brace (Fig. 116).
Fig. 117
26. Remove boost valve connecting tube (Fig. 117). Disengage tube from upper housing port first. Then rock opposite end of tube back and forth to
work it out of lower housing.
CAUTION: Do not use tools to loosen or pry the connecting tube out of the valve body housings. Loosen and remove the tube by hand only.
Fig. 118
27. Turn valve body over so lower housing is facing upward (Fig. 118). In this position, the two check balls in upper housing will remain in place and
not fall out when lower housing and separator plate are removed.
