Sprinter 3500 L5-2.7L DSL Turbo (2004)
Windshield Washer Spray Nozzle: Service and Repair
REMOVAL

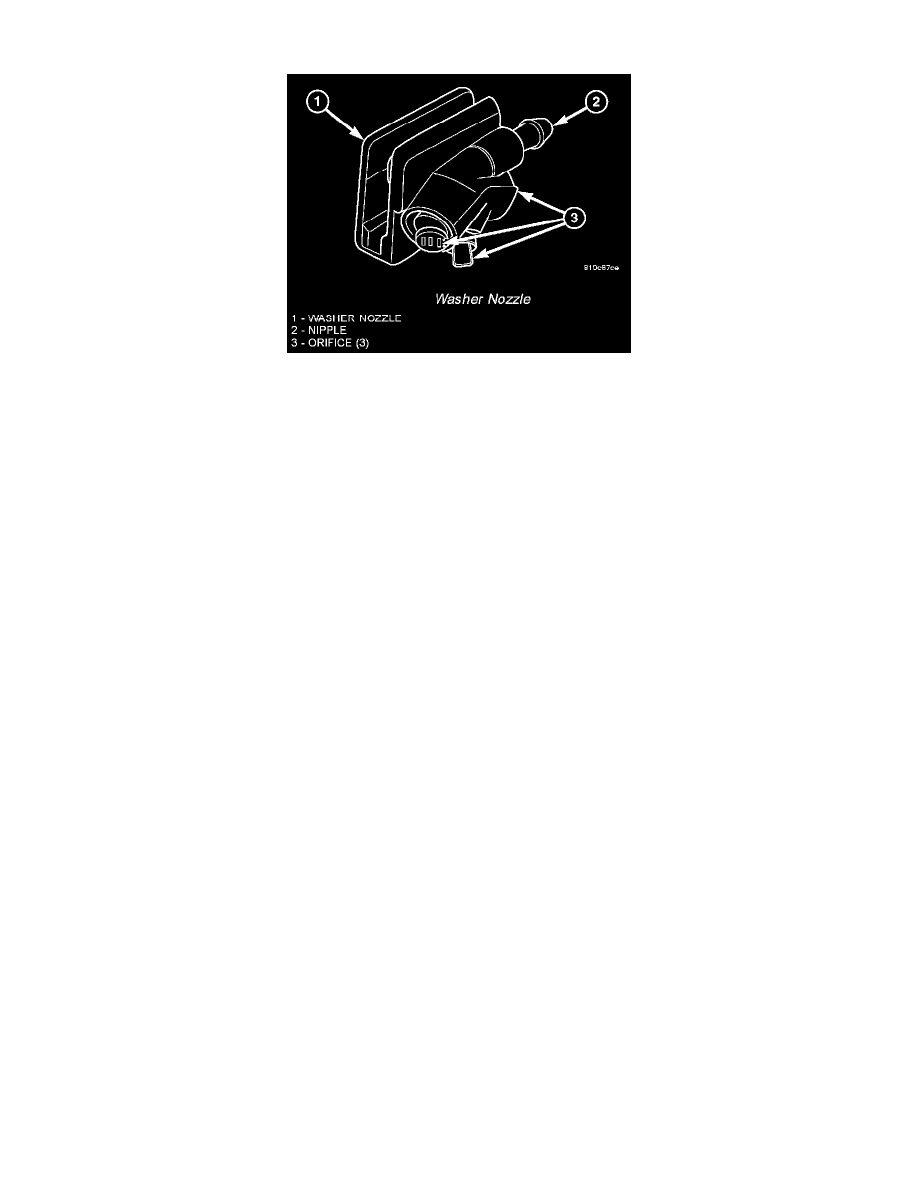

Washer Nozzle Remove/Install
1. Using hand pressure, unsnap the washer nozzle from the wiper arm.
2. Disconnect the hose from the barbed nipple of the washer nozzle.
INSTALLATION
1. Reconnect the hose to the barbed nipple of the washer nozzle.
2. Using hand pressure, slide the washer nozzle onto the wiper arm until it snaps into place. Be certain the nozzle snap feature is engaged in the
locator hole on the wiper arm.
