Sprinter 3500 V6-3.0L DSL Turbo VIN 45 (2007)
Cabin Air Filter: Description and Operation
Distribution - Front
DESCRIPTION

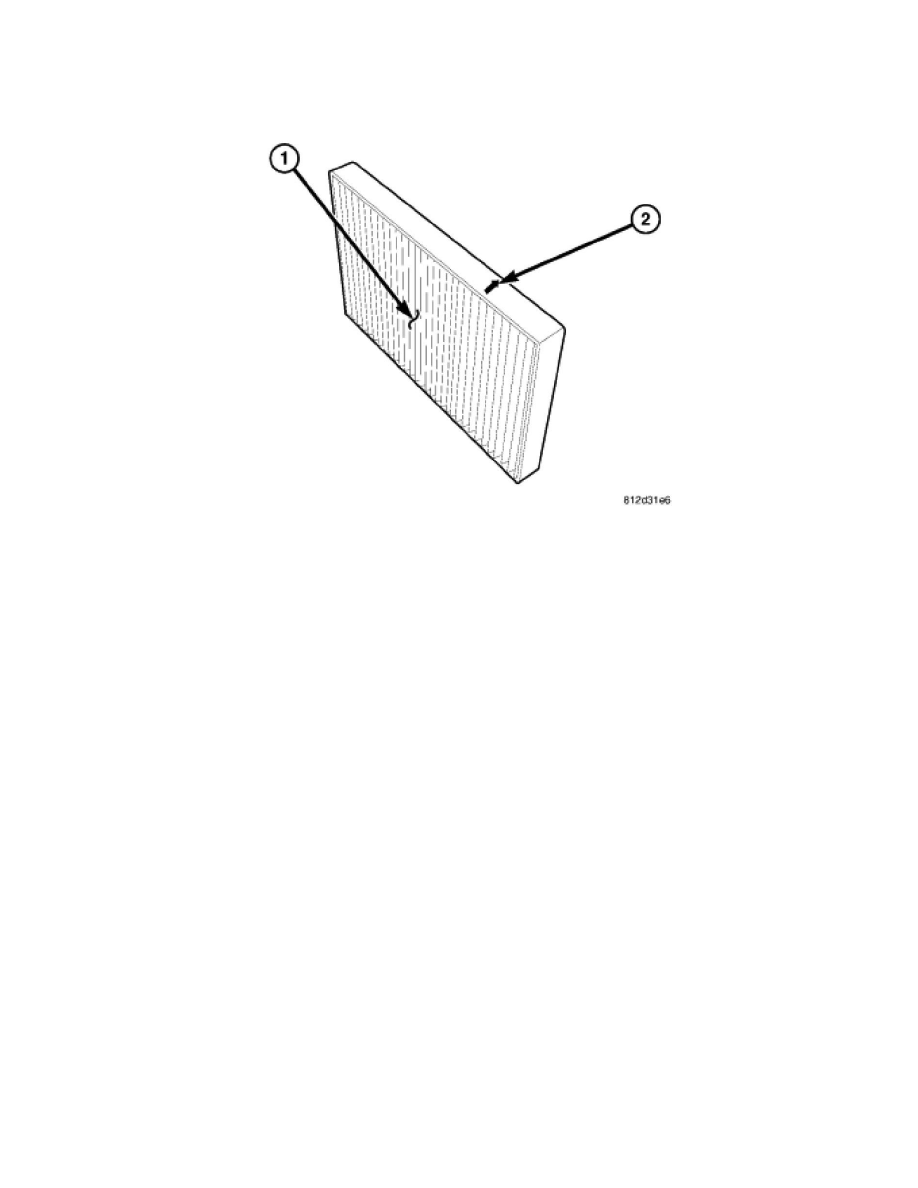

Some models are equipped with a particulate air filter (1) that helps purify the outside air entering the HVAC housing. The filter is mounted in the engine
compartment, inside of the fresh air inlet housing of the heating-A/C system.
The filter should be replaced at least every 24,000 km (15,000 miles) or each year and checked if heating-A/C system performance seems lower than
expected. The particulate air filter is labeled with an arrow (2) to indicate air flow direction through the filter.
