Stratus Coupe V6-3.0L VIN H (2001)
Trunk Lamp: Diagnostic Aids

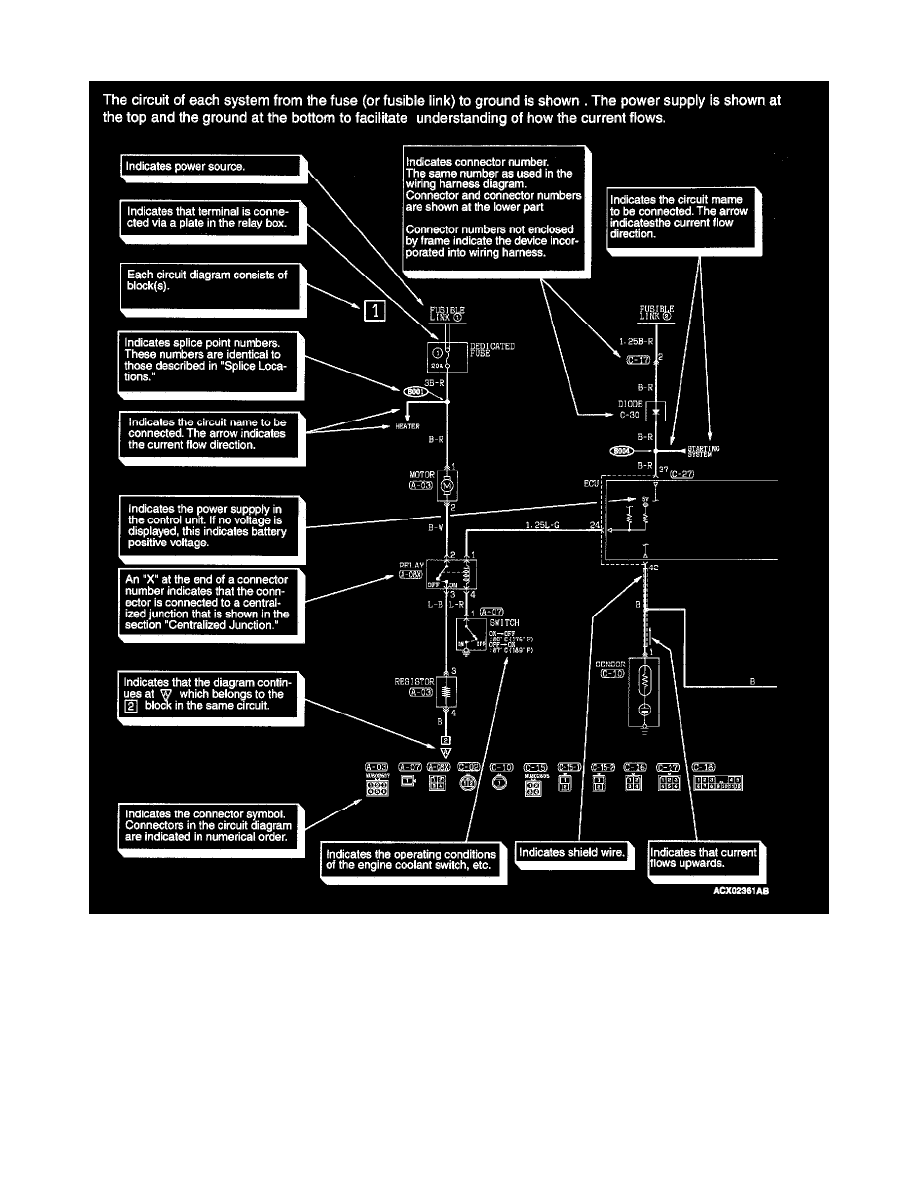

Harness Connector Inspection
CONNECTOR CONTINUITY AND VOLTAGE TEST
Required Special Tools:
-
MB991219: Test Harness Set
-
MD998459: Test Harness
Follow the steps below to avoid causing poor connector contact and/or reduced waterproof performance of connectors when checking continuity and/or
voltage at connectors of waterproof connectors.
CAUTION: Never backprobe a waterproof connector. Backprobing a connector may cause the terminals to corrode, deteriorating circuit performance.
1. If checking is performed with the circuit in the state of continuity, to use special tool MD998459.
CAUTION: Forcing the probe into the terminal may open the terminal, causing intermittent or poor contact and creating an open circuit.
2. If the connector is disconnected for checking and the facing part is the female pin side, the harness for checking the contact pressure of connector
pins (MB991219) should be used.
CAUTION: Do not simultaneously contact more than one terminal with the probe. Contacting two or more terminals at the same time may
damage a circuit, possibly to the point of starting an electrical fire.
3. If the facing part is the male pin side, contact the test probe directly at the pins.
IMPROPER TERMINAL ENGAGEMENT CHECK
