Stratus Sedan V6-2.7L VIN T FFV (2003)

Page 5
background image

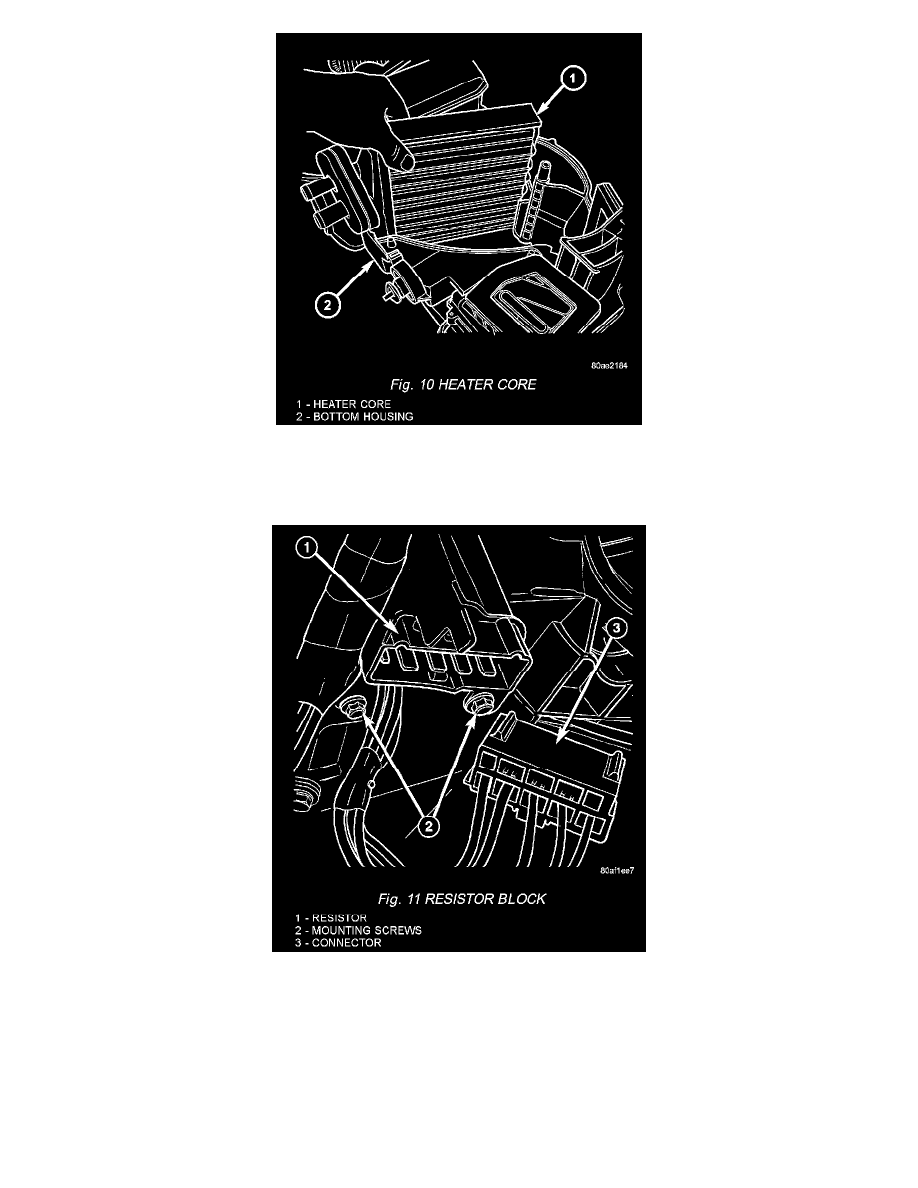

Heater Core

16. Lift heater core out of the bottom housing.
17. Disconnect blower resistor wiring connector/ ATC blower motor power module wiring connectors.

Resistor Block
