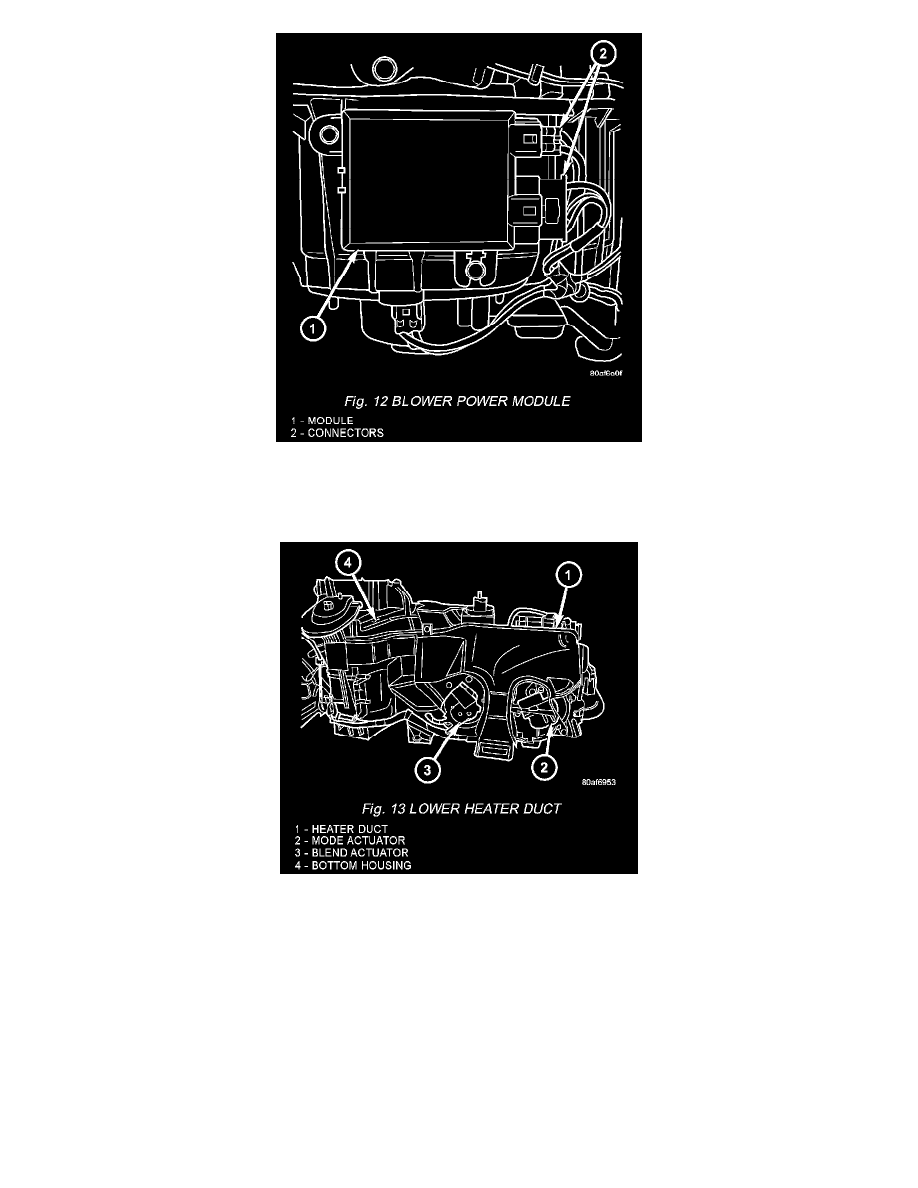

Blower Power Module

18. Remove blower resistor mounting screws /ATC blower motor power module mounting screws.
19. Remove resistor from the bottom of the housing or ATC module from the side of the housing if equipped.

Lower Heater Duct

20. Remove lower heater duct screws and remove duct from the bottom housing.
