Viper GTS V10-80L VIN E HVAC Assembly (Page 3956)
Housing Assembly HVAC: Service and Repair
Heater - A/C Housing Removal and Installation
REMOVAL
1. Disconnect battery.
2. Remove blower motor assembly. Refer to: "Blower Motor : Service and Repair" See: Blower Motor/Service and Repair
3. Drain coolant from cooling system. Refer to: "Engine, Cooling and Exhaust : Cooling System : Service and Repair" See: Engine, Cooling
and Exhaust/Cooling System/Service and Repair
4. Disconnect heater hoses.
Knee Bolster
5. Remove right side knee bolster and steel plate assembly.
6. Remove heater air ducts.
7. Remove lower heater housing cover.
8. Label vacuum lines and then disconnect.

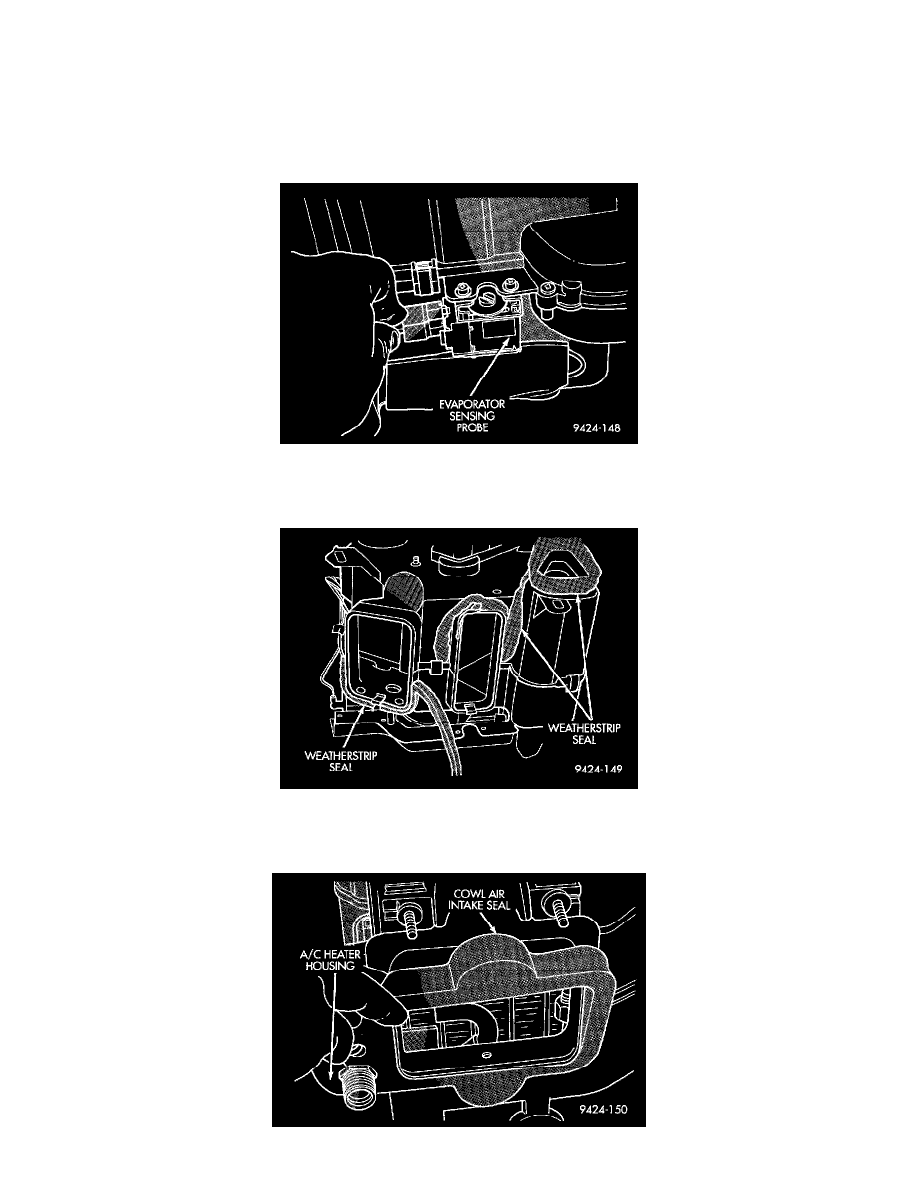

Heater Housing
9. Remove heater housing mounting nuts. Two are located under the instrument panel and the other two are located in the engine compartment.
10. Remove heater assembly from the vehicle.
