Drive Belt|Diagrams|Page 642 > < Timing Component Alignment Marks|Locations

Viper GTS V10-8.0L VIN E (1999)

Page 1
background image

Drive Belt: Diagrams

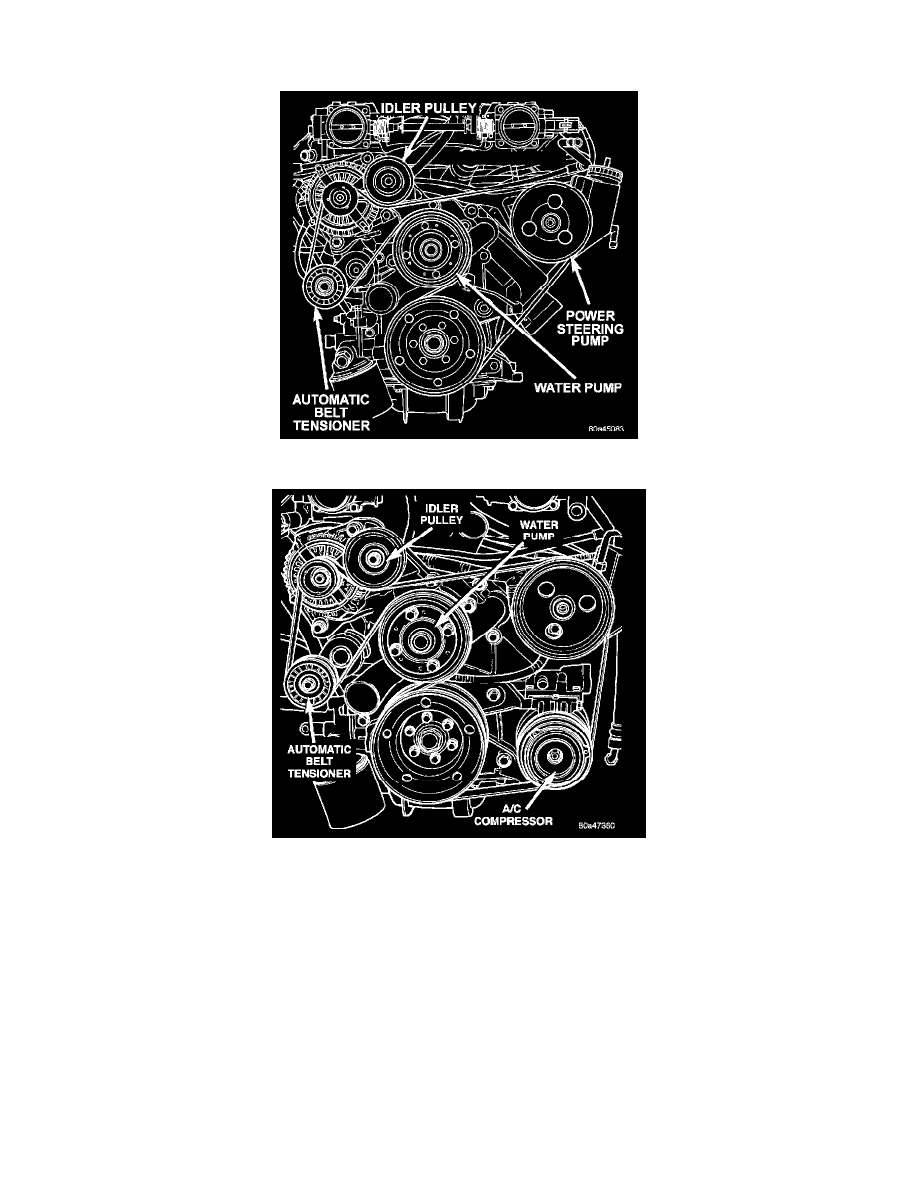

Poly-V (Serpentine) Drive Belt Routing

Accessory Drive Belt Without A/C

Accessory Drive Belt With A/C
