Eagle Wagon L6-258 4.2L (1984)
^
Water on front and rear floor near doors
Possible Causes:
^
Door seal out of position
^
Door out of adjustment
^
Faulty sealing of rear quarter window
^
Plastic water dam sheet installed incorrectly
Repair:
^
Reposition seal
^
Adjust door
^
Reseal rear quarter window with 3M08609 from the inside
^
Remove door trim panel and reinstall the plastic sheet. Then seal the sheet with 3M08041 or 08044

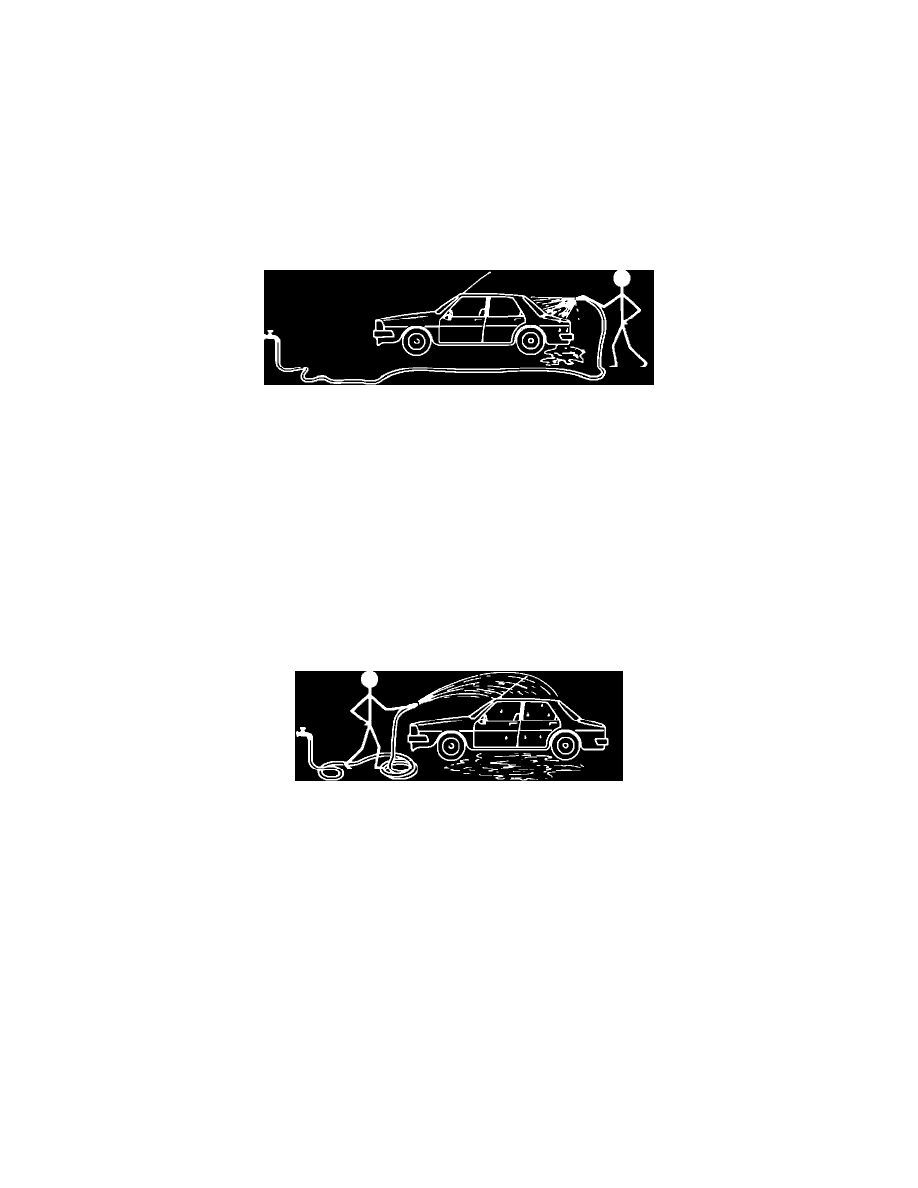

ZONE 9
ZONE 9
Test Results:
^
Water in luggage compartment and on rear shelves
Possible Causes:
^
Deck lid seal faulty
^
Gutter supports not sealed
^
Gaps in urethane adhesive/sealer around rear window glass
Repair
^
Align or replace seal if damaged
^
Reseal with 3M08646 sealer
^
Gaps in rear window urethane adhesive/sealer If gaps are small, reseal from inside vehicle with 3M08609 urethane sealer. If gaps are large (glass
pulled away from body or urethane bead, remove and reinstall window with installation kit 812 4901.
ZONE 10
ZONE 10
Test Results:
^
Water near A, B or C Pillars
^
Water on rear shelves or in luggage compartment
^
Water inside B pillar (seat belt damp)
^
Water drips from sunroof
Possible Causes:
^
Poor sealing between body side and roof under mouldings
^
B-pillar joint not sealed.
^
Sunroof out of adjustment or drains blocked
Repair
^
Reseal joint between body side and roof using 3M08646
^
Reseal the B-pillar joint with 3M08646 sealer
^
Clear the sunroof drains and adjust the sunroof
