Fog/Driving Lamp Switch: Service and Repair
Mechanical Type

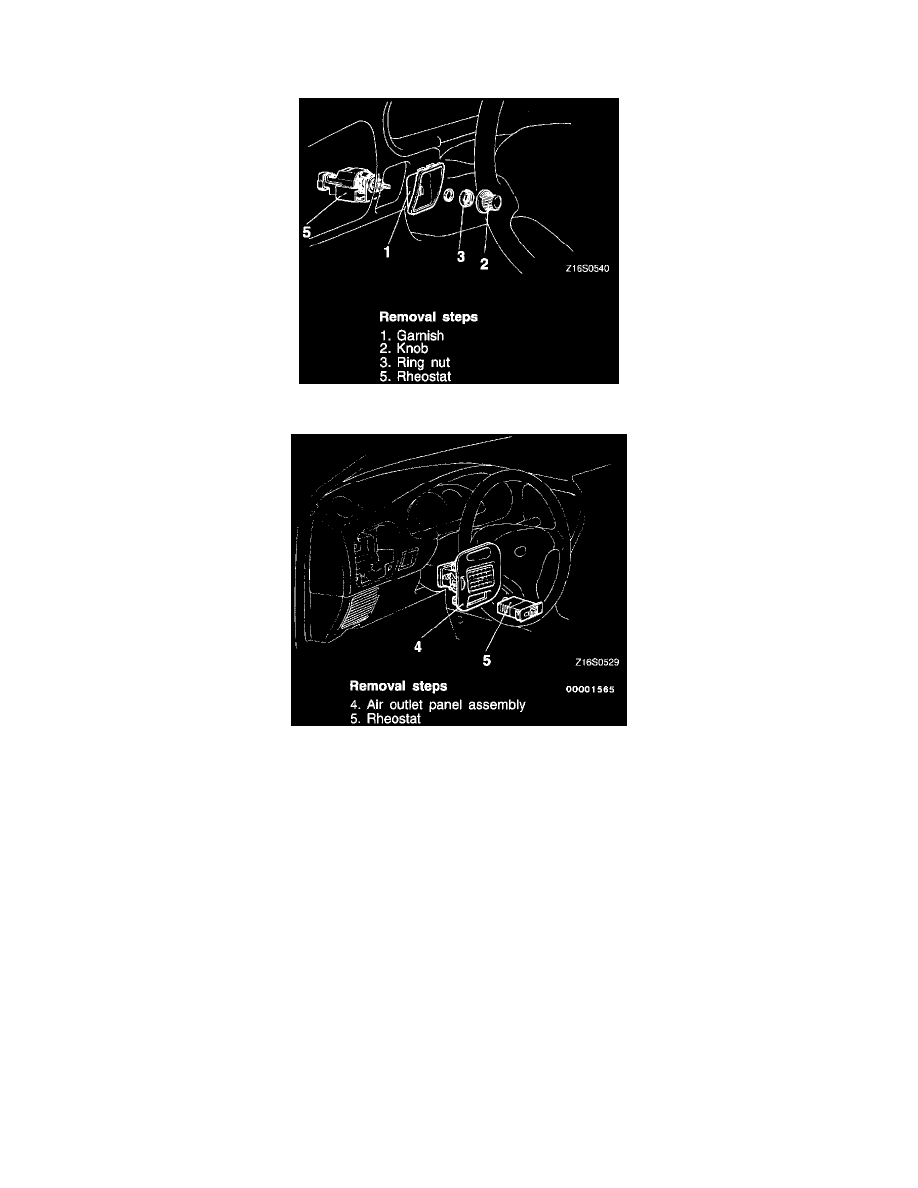

Rheostat - Removal And Installation

Rheostat -Removal And Installation

REMOVE

1. Garnish
2. Knob
3. Ring nut
5. Rheostat


INSTALL

1. Rheostat
2. Ring nut
3. Knob
5. Garnish
