Summit L4-1795cc 1.8L SOHC (1995)

Page 1
background image

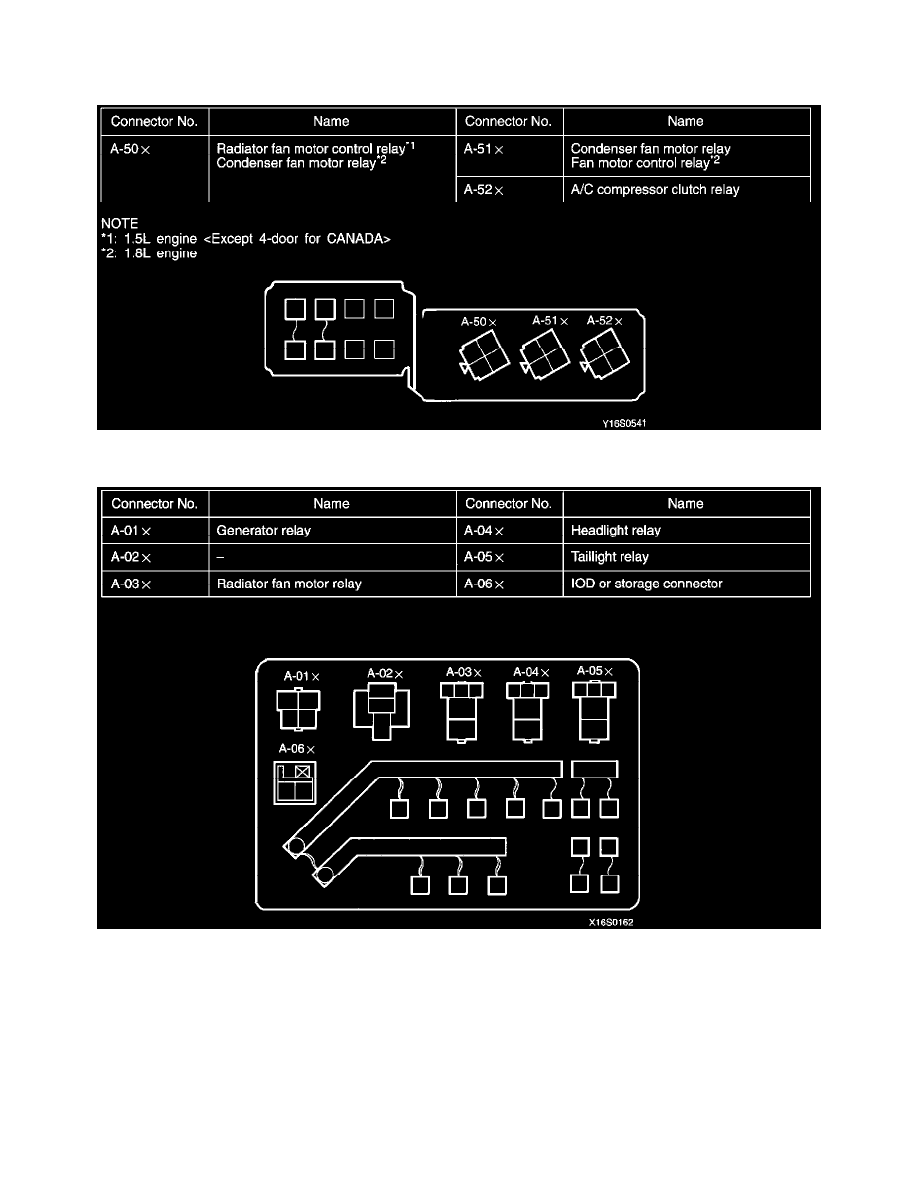

Relay Box: Locations
Passenger Compartment Relay Center

Main passenger compartment relay center is located behind lower lefthand side of instrument panel, left of steering column.
