Summit Wagon FWD L4-1795cc 1.8L SOHC (1994)
Water Pump: Service and Repair

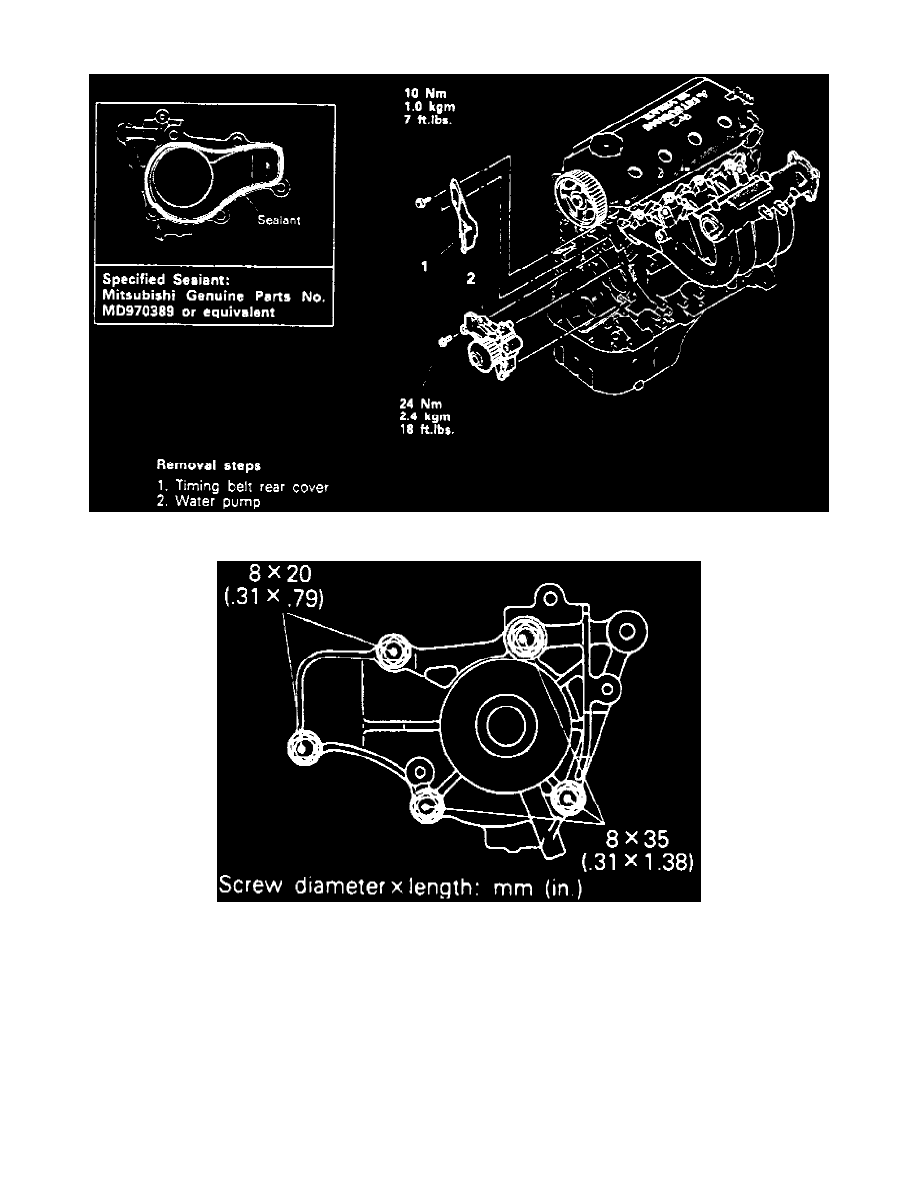

Fig. 52 Water Pump Replacement
Fig. 54 Water Pump Bolt Locations
TIP: In order to make it easy to remove the water pump pulley, loosen the pulley mounting bolt with the belt attached beforehand.
WATER PUMP REPLACEMENT
1. Drain cooling system into a suitable container.
2. Remove timing belt as outlined under Timing Belt, Replace.
3. Remove timing belt rear cover then water pump, Fig. 52.
4. Reverse procedure to install, installing water pump bolts in locations shown in Fig. 54.
