Contour V6-153 2.5L DOHC (1996)
6.

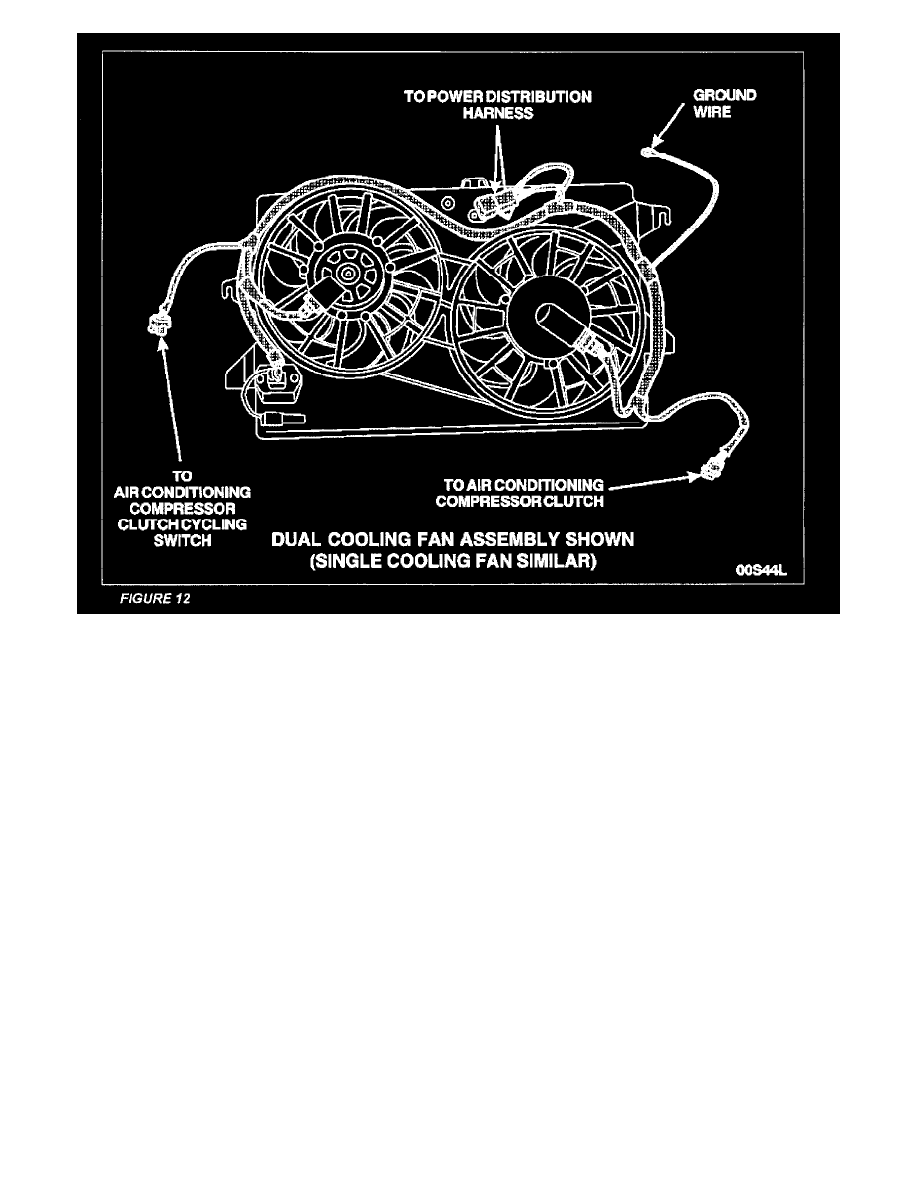

Disconnect the air conditioning compressor clutch connector, if equipped. See Figure 12.
7.
Lower the vehicle.
8.
Remove the ground wire from the radiator support. See Figure 12.
9.
Detach (from shroud) then disconnect the power distribution harness connectors. See Figure 12.
10.
Disconnect the air conditioning compressor clutch cycling switch, if equipped. See Figure 12.
11.
Disconnect the coolant overflow tube from the radiator.
12.
On vehicles equipped with an automatic transaxle, disconnect the upper transaxle cooling me from the radiator.
13.
Disconnect the upper radiator hose from the radiator.
14.
Raise and support the vehicle.
15.
On vehicles equipped with an automatic transaxle, disconnect the lower transaxle cooling line from the radiator.
16.
Disconnect the lower radiator hose from the radiator.
