Contour V6-153 2.5L DOHC (1996)

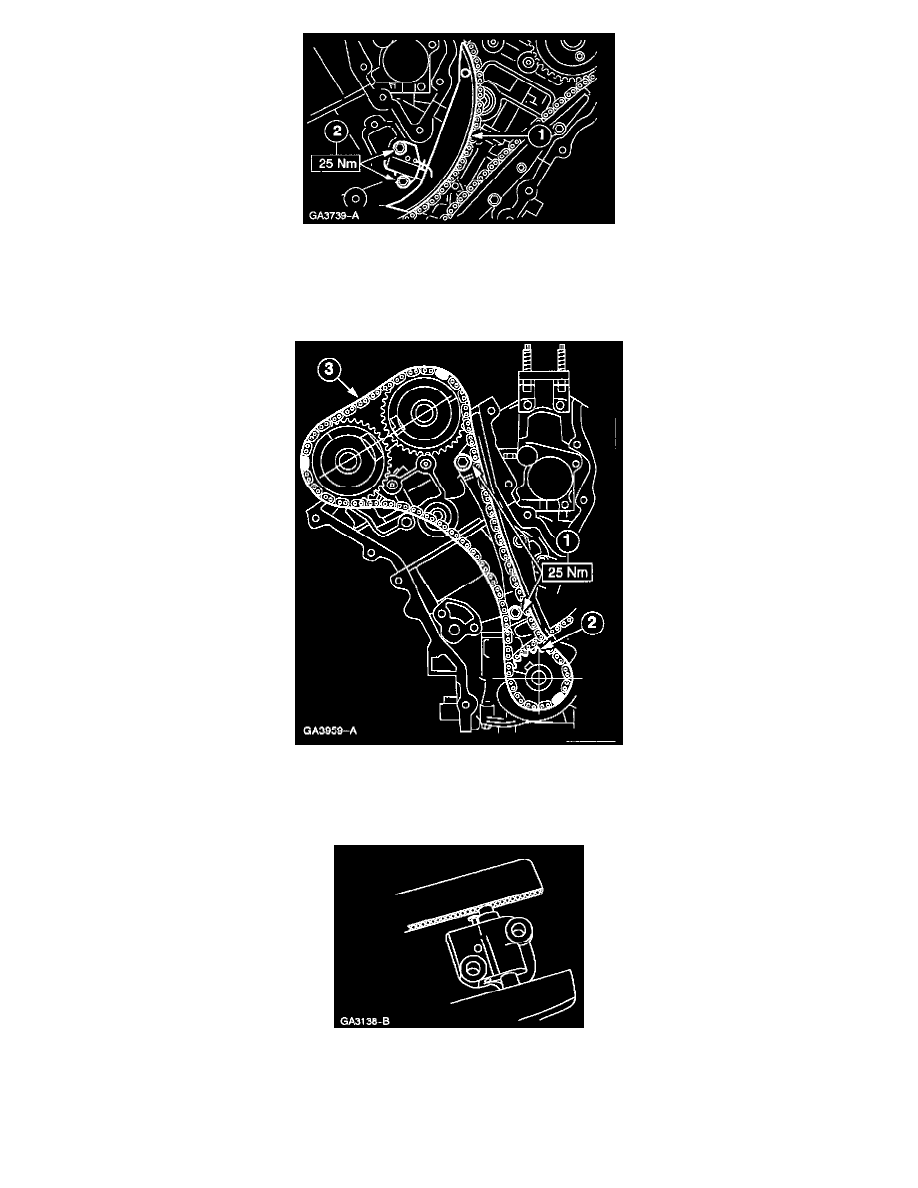

9. Install the LH timing chain tensioner.
1
Install the LH tensioner arm (black material).
2
Install the timing chain tensioner and bolts.
NOTE: The colored links of the timing chain and the marks on the timing sprockets must line up
10 Install the RH timing chain.
1
Install the timing chain guide and bolts (tan material).
2
Install the crankshaft sprocket.
3
Install the timing chain.
11. Position the RH timing chain tensioner in a softjawed vise.
CAUTION: During tensioner compression, do not release ratchet stem until tensioner piston is fully bottomed in its bore, or damage to the
ratchet stem will result.
