Contour V6-153 2.5L DOHC (1996)
29.
On models equipped with automatic transaxle, Install new gaskets on muffler inlet and flex-pipe inlet.
30.
On models equipped with manual transaxle, install new gaskets on muffler inlet and Y-pipe.
31.
Position three-way catalytic converter on muffler inlet and flex-pipe (automatic transaxle) or Y-pipe (manual transaxle).
32.
Install three-way catalytic converter to flex-pipe or Y-pipe retaining nuts. Tighten nuts to 30-40 Nm (22-30 lb/ft).
33.
Install three-way catalytic converter to muffler inlet retaining nuts. Tighten nuts to 34-46 Nm (26-33 lb/ft).
34.
Connect rear catalyst monitor electrical connector, if equipped.
35.
Lower vehicle.
36.
From engine compartment, perform the following:
^
Connect right (rear) oxygen sensor electrical connector.
^
Tighten EGR tube to EGR valve to 35-45 Nm (26-33 lb/ft).
^
Connect idle air control vacuum hose.
^
Connect idle air control electrical connector.
37.
Connect battery negative cable.
38.
Remove memory saver.
39.
Start vehicle and check for exhaust leaks.

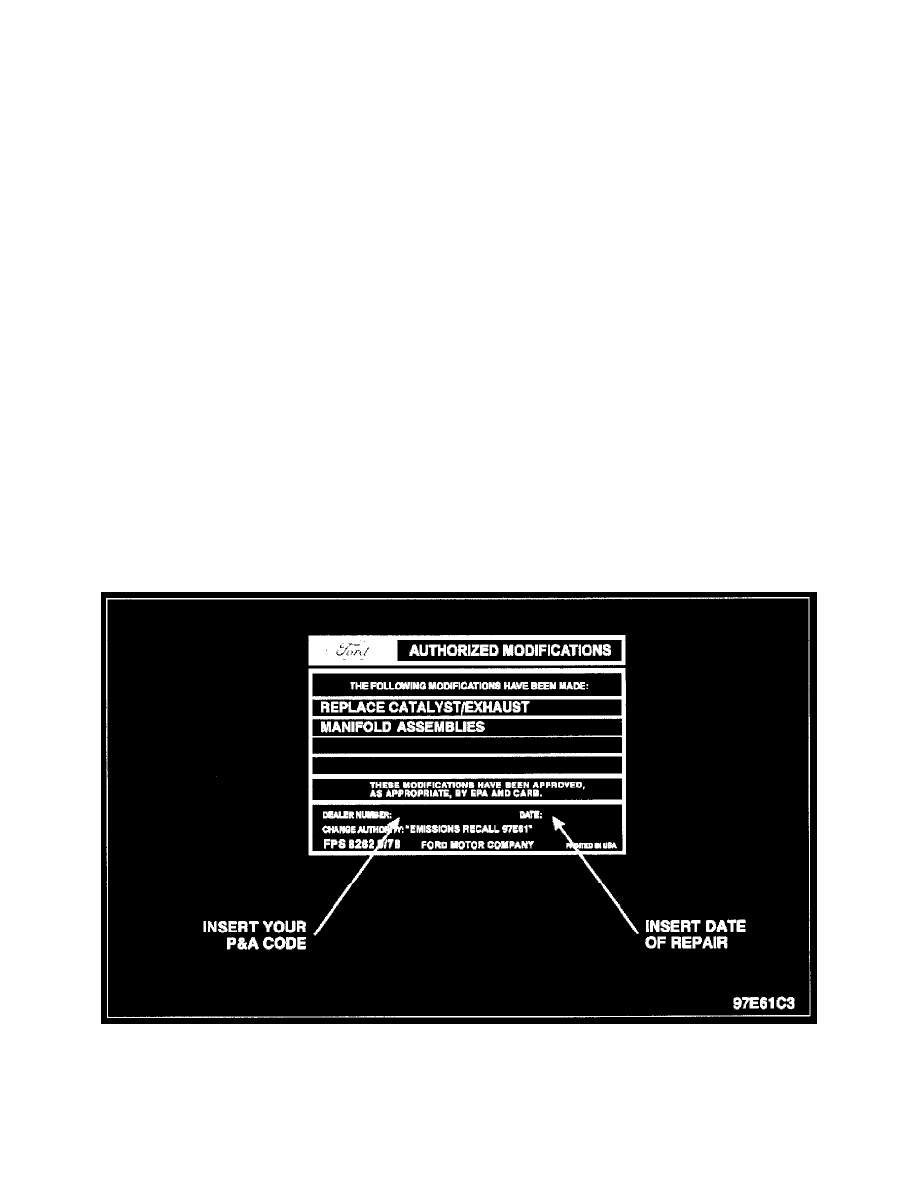

AUTHORIZED MODIFICATION LABEL
^
Prepare and attach the preprinted Authorized Modifications Label provided in the kit of parts. Write you P & A Code and date of repair as shown.
REMOVAL CATALYSTS
Removed catalysts must be returned. An FPS-700 Parts Disposition Tag will be issued to recall the removed catalysts. Return of removed catalysts with
the FPS-700 tag attached must be shipped prepaid freight via United Parcel Service (UPS) to the address on the reverse side of the tag.
