Contour V6-153 2.5L DOHC (1996)
2.

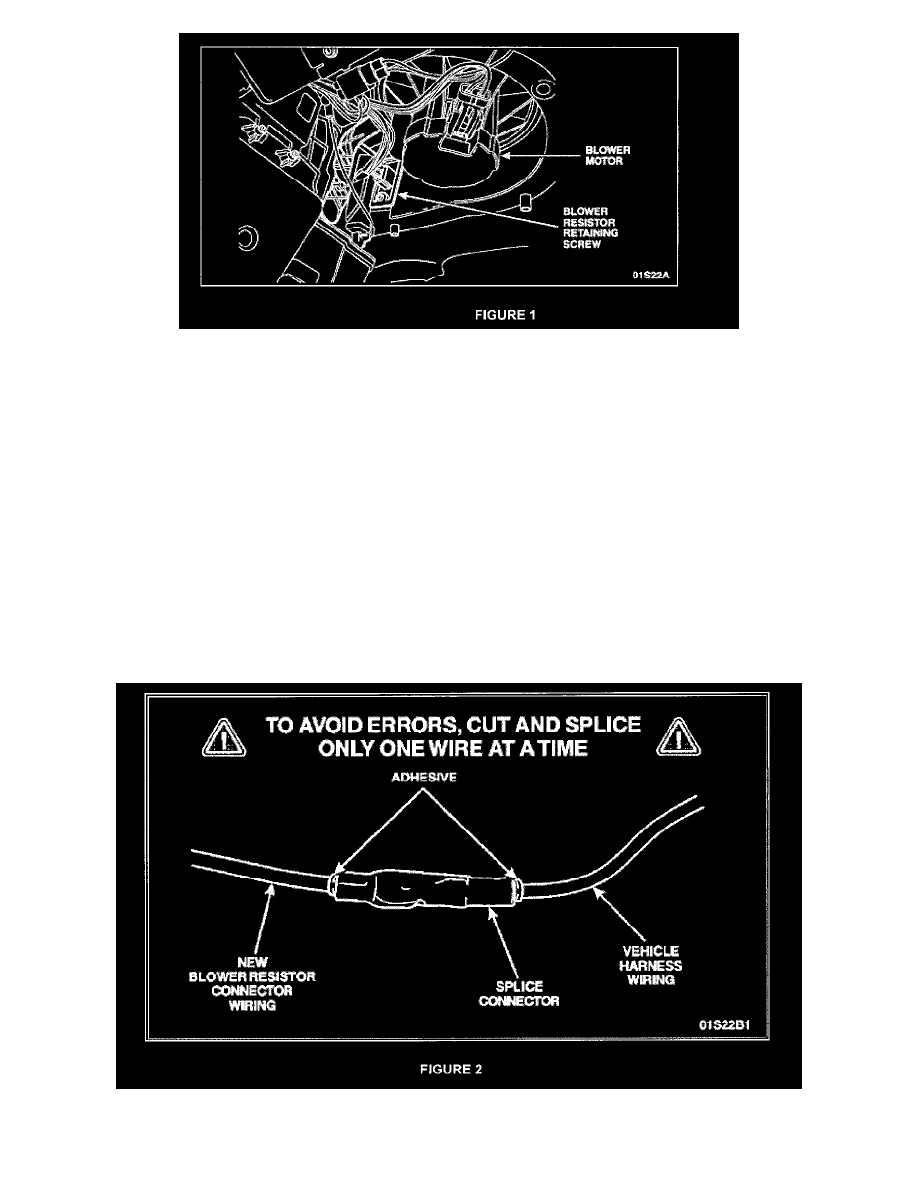

Remove the retaining screw and blower resistor and connector from the heater housing. See Figure 1.
CAUTION:
Cut and splice only one wire at a time. The wire colors on the new resistor jumper wire do not match the existing wiring harness colors.
3.
Install the new resistor jumper wire (part no. F5RZ-14A411-CA).
a.
Select the first wire to be spliced from the switch wiring harness and cut it as close as possible to the blower resistor connector.
b.
Select the corresponding wire from the new resistor jumper wire.
c.
Strip 1/4-inch insulation from the selected wires.
d.
Install the appropriate splice connector using Crimp Tool # AD1522 or equivalent ratchet action crimp tool.
e.
Test the integrity of all splices after crimping. Grasp the wires at each splice and pull gently. If any wire is not attached securely, replace the
splice connector and crimp firmly.
f.
Repeat steps A through E for the remaining wires, one at a time.
g.
Heat each splice connector thoroughly until the tubing shrinks and adhesive flows from each end. Use Rotunda Heat Gun R07-10300 or
equivalent. See Figure 2.
