Contour V6-153 2.5L DOHC (1996)

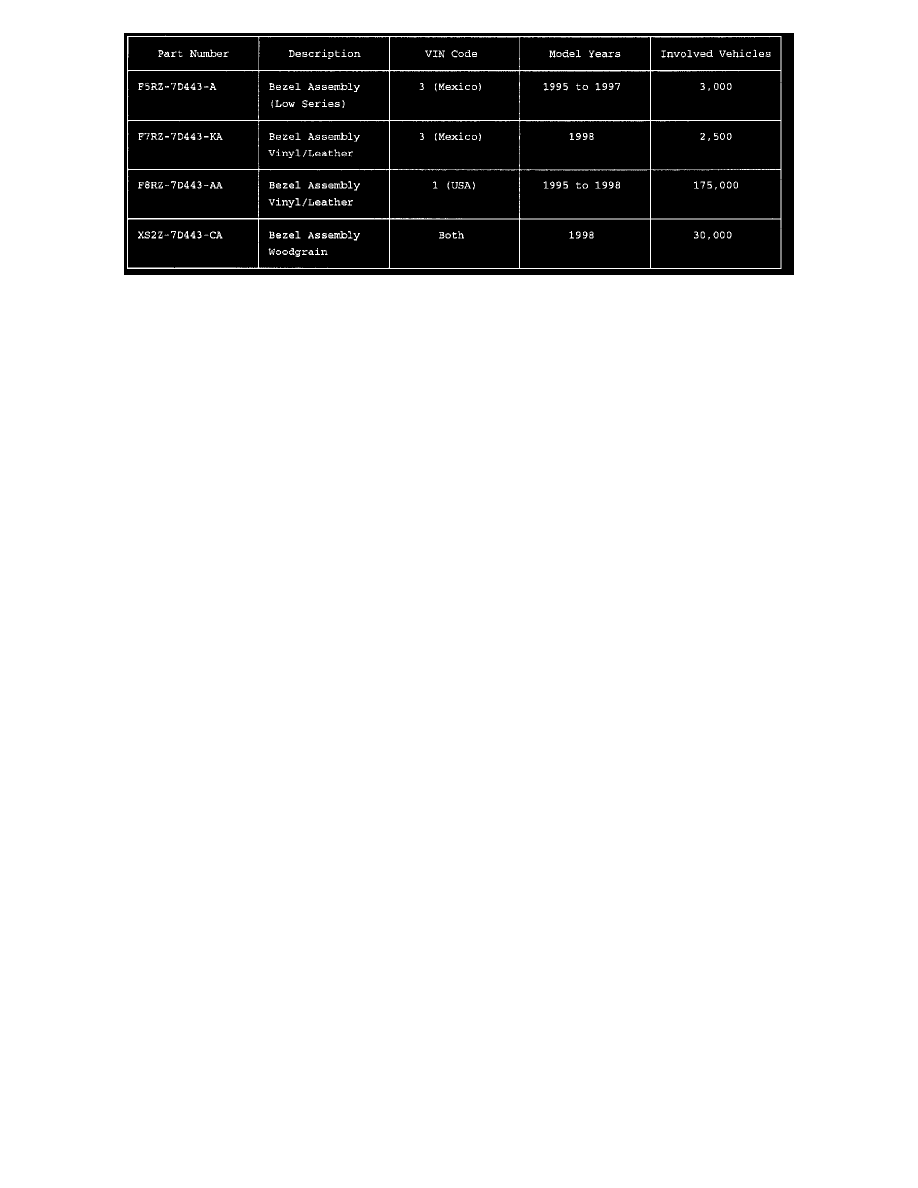

In order to establish parts ordering requirements, dealers must identify vehicle build date and determine if the vehicle was manufactured in USA or
Mexico (First VIN code position: 1 USA and 3 Mexico). Woodgrain bezels are the same for both USA and Mexico.
DEALER PRICE
For latest prices, check or call your:
^
Order Processing Center
^
DOES II
^
Updated Price Book
EXCESS STOCK RETURN
Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy Procedure Bulletin 4000.
Attachment III - Technical Information
TRANSMISSION RANGE INDICATOR BEZEL REPLACEMENT
AFFECTED VEHICLES:
1995-1998 CONTOUR, 1998 MYSTIQUE
SERVICE PROCEDURE
1.
Remove the selector assembly (shifter assembly) from the vehicle. Refer to 1998 Contour/Mystique Workshop Manual, Section 307-05-29, for
details.
2.
Move the shift selector lever to position "D."
3.
Raise the vehicle. Refer to Section 100-02 of the Workshop Manual..
4.
Remove the heat shield from the underbody.
5.
Rotate adjusting cap to unlock cable adjustment.
6.
Disconnect the selector cable (four nuts and end fitting).
7.
Lower the vehicle.
8.
Unsnap the shifter PRNDL assembly out of the console.
9.
Disconnect the selector lever electrical connector.
10.
Replace the PRNDL bezel. Refer to Section 307-95 of the Workshop Manual.
NOTE:
USE JAW PROTECTORS FOR ALL WORK DONE IN A VISE.
11.
Disconnect the lower electrical connector from the selector assembly.
12.
Disconnect the 2-inch O/D switch wires (green/black) from the connector by removing the red wire retainer out of the connector, disconnecting the
