Contour V6-153 2.5L DOHC (1996)
9.

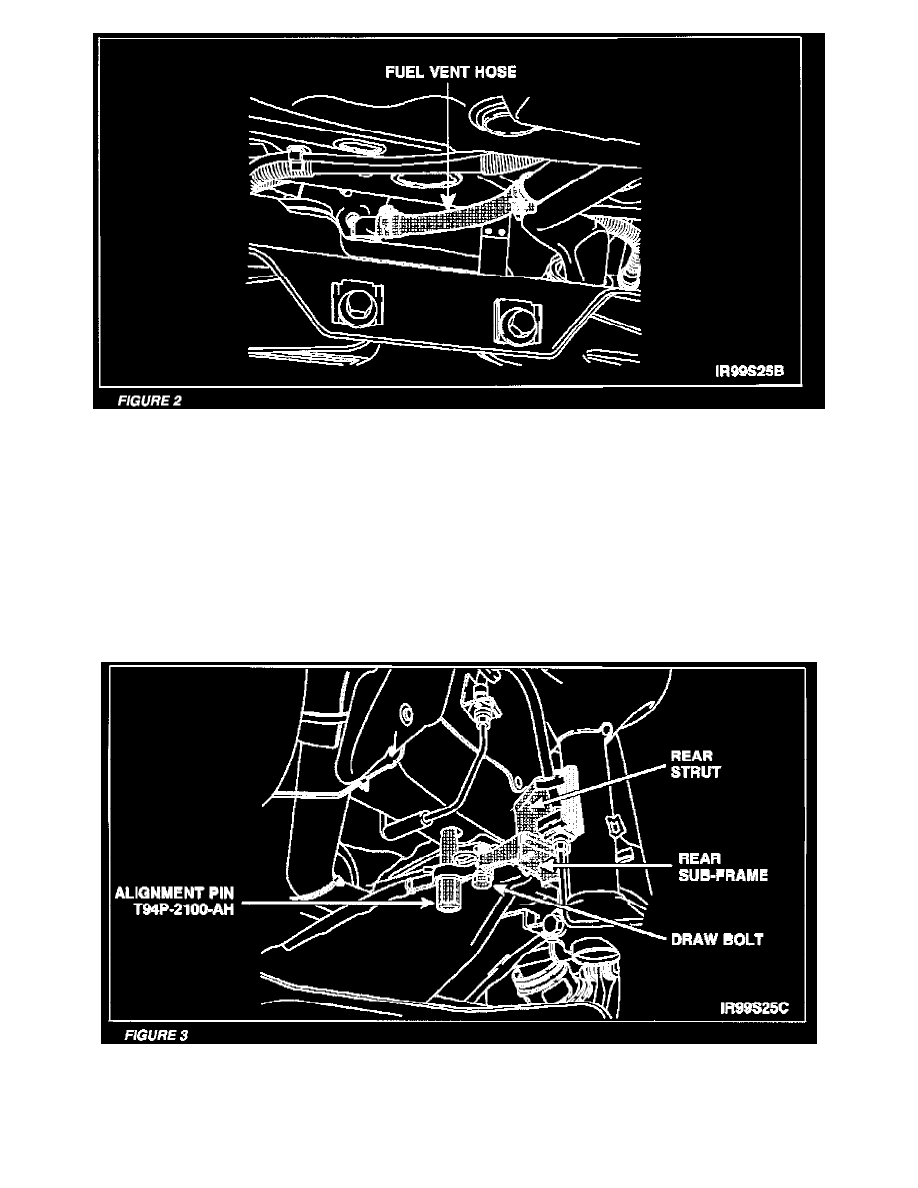

Lower the adjustable jack stand and rear sub-frame 75 mm (3 inches) to access the fuel vent hose. See Figure 2.
10.
Replace the fuel vent hose as follows:
Loosen the two (2) clamps, then remove the hose.
Install the replacement hose with the original clamps. Tighten the clamps securely.
11.
Install the Rear Sub-Frame Alignment Pin Set T94P-2100-AH into the alignment holes of the rear sub-frame. See Figure 3.
WARNING
RAISING THE REAR SUB-FRAME BEYOND THE POINT WHERE THE SUB-FRAME CONTACTS THE REAR STRUTS MAY RESULT IN
SUDDEN SHIFTING OF THE VEHICLE ON THE HOIST.
12.
Raise the adjustable jack stand and rear sub-frame until the rear struts contact the sub-frame. See figure 3.
NOTE:
Guide the alignment pins into the body as the rear sub-frame is raised into place.
