Crown Victoria V8-4.6L Flex Fuel (2008)
Ignition Switch Lock Cylinder: Service and Repair
Ignition Lock Cylinder - Functional
IGNITION LOCK CYLINDER - FUNCTIONAL

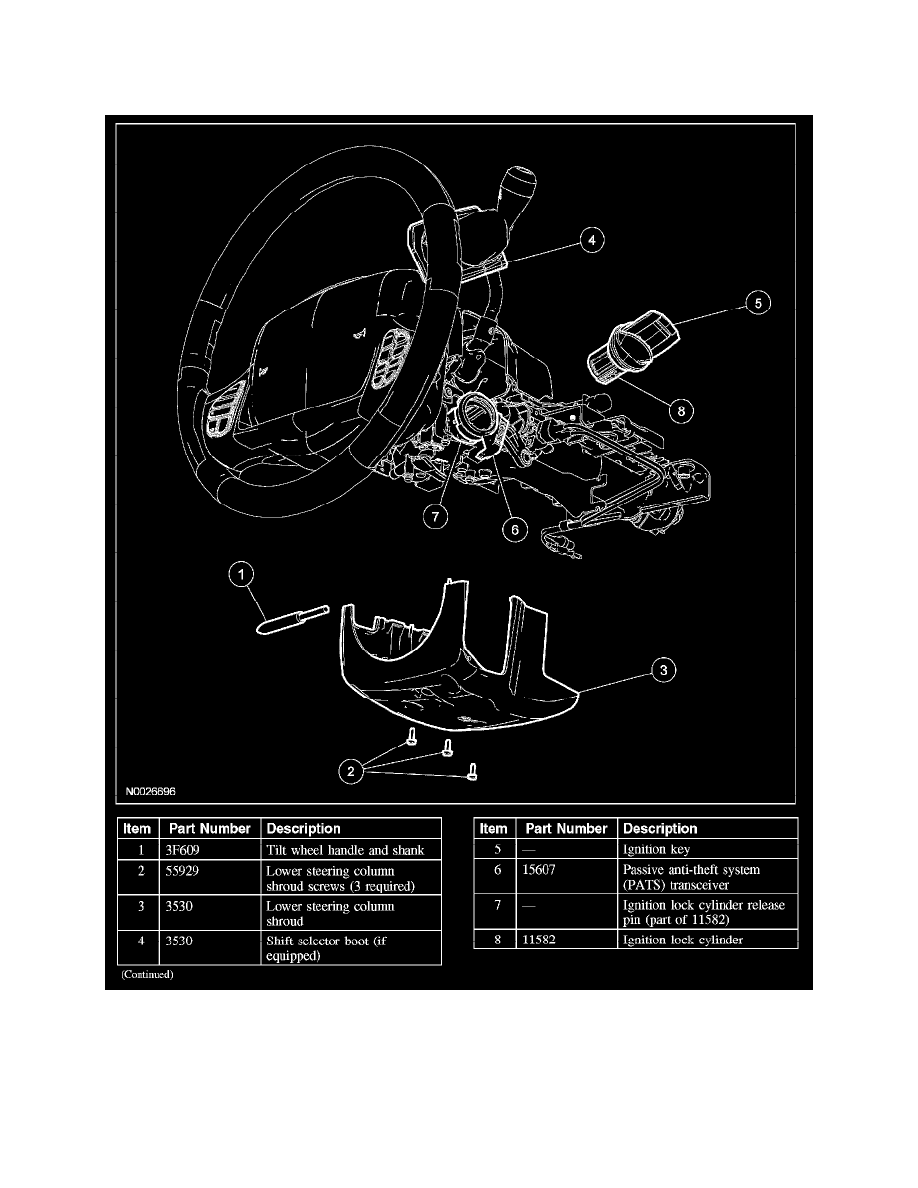

Removal and Installation
1. Disconnect the battery.
2. Remove the tilt wheel handle and shank.
3. Remove the 3 screws and the lower steering column shroud.
4. If equipped, position the shift selector boot aside.
5. Insert the ignition key and turn it to the ACC position.
6. Release the 2 passive anti-theft system (PATS) transceiver tabs and rotate the PATS transceiver until there is access to the ignition lock cylinder
release pin hole.
