E 250 V10-6.8L VIN S (2005)
Brake Caliper: Service and Repair
Rear Disc Brake
Caliper Removal and Installation
Brake Caliper-E-250, E-350
Removal and Installation
WARNING: Brake fluid contains polyglycolethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake
fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water
and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Brake fluid is harmful to painted or plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with
water.

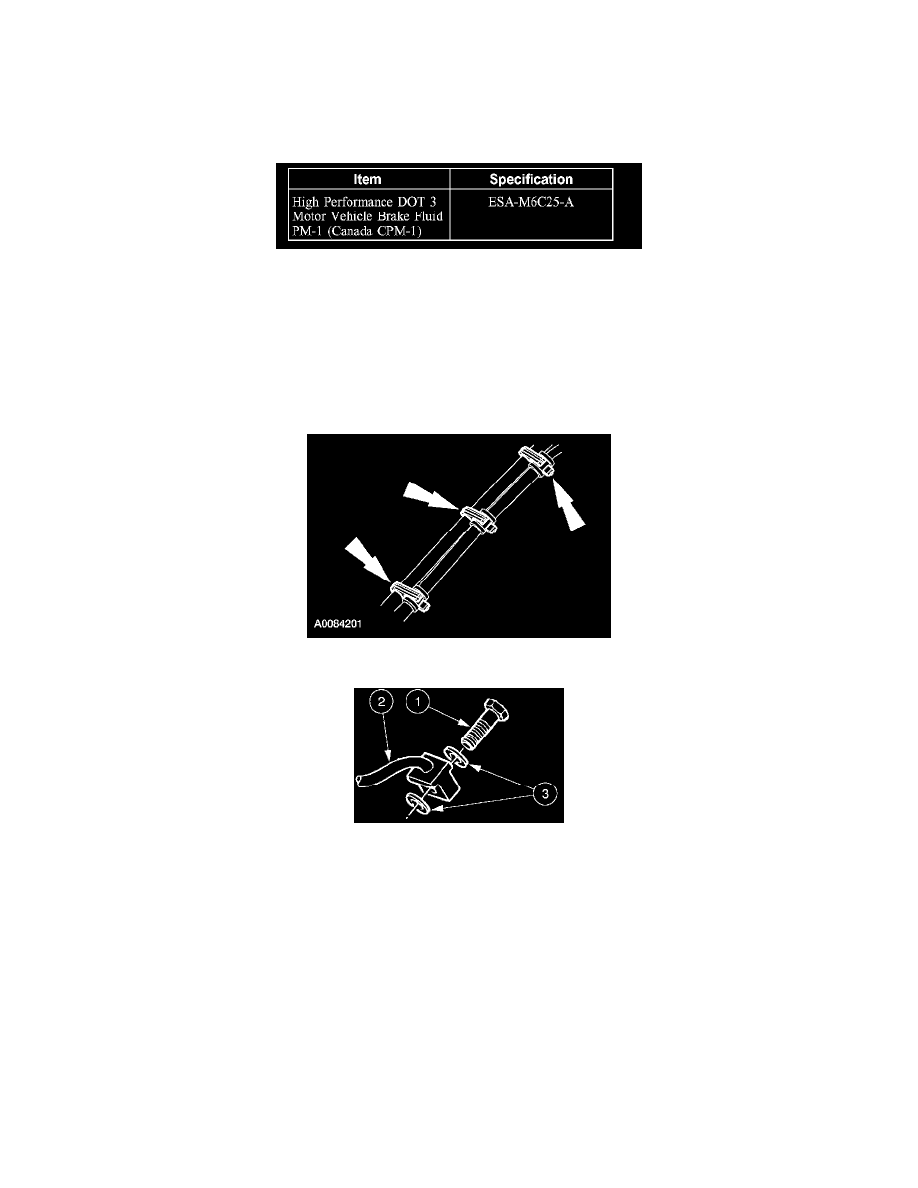

1. Remove the wheel and tire assembly.
2. Remove the caliper pin bolts.
3. Remove the brake hose flow bolt and discard the copper washers.
4. Remove the rear disc brake caliper.
5. NOTE: Use new copper washers on the brake hose flow bolt.
To install, reverse the removal procedure.
6. Bleed the brake system.
Caliper Disassembly and Assembly
