E 250 V10-6.8L VIN S (2005)

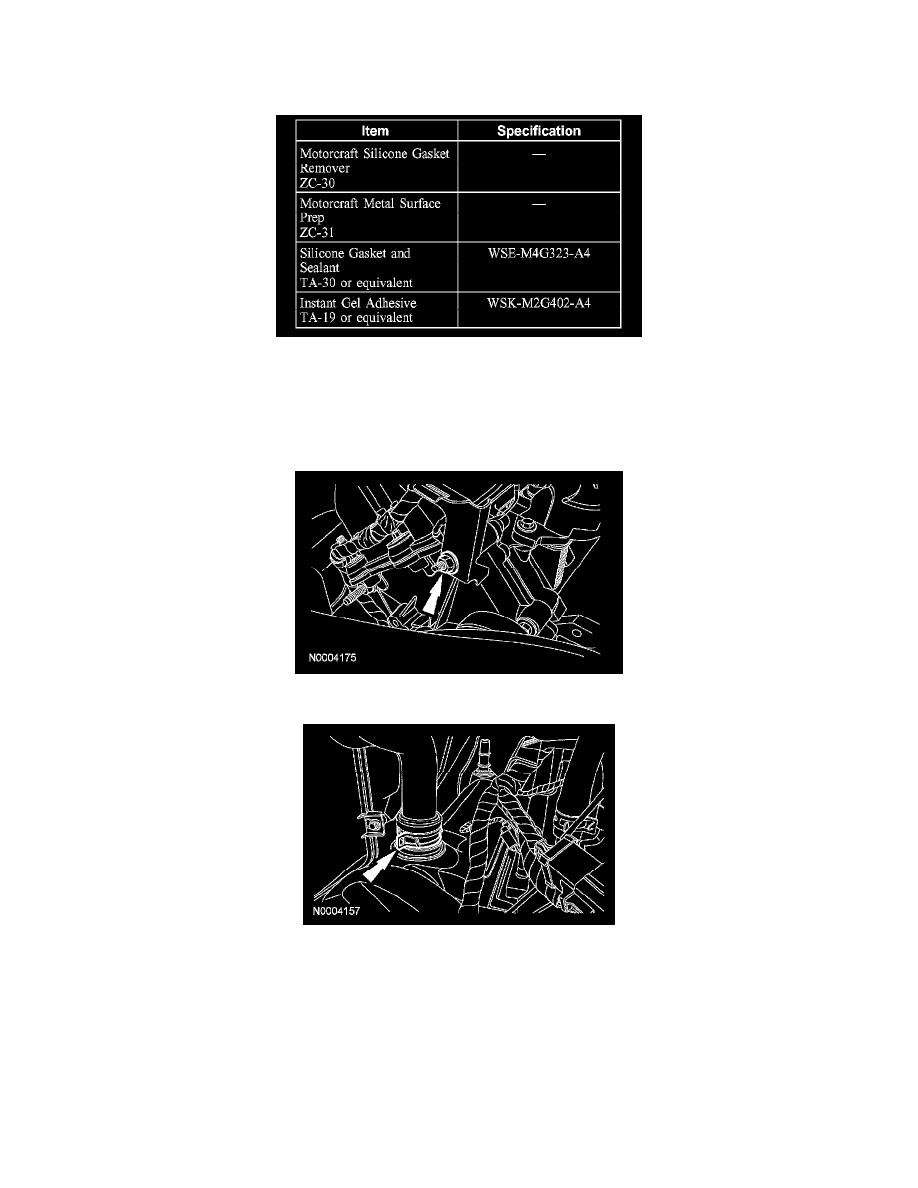

10. Remove the stud bolts and position the RH fuel charge wiring harness aside.
11. Disconnect the five ignition coil electrical connectors.
12. Disconnect the five fuel injector electrical connectors. Lift the fuel charging wiring off the valve cover.
13. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools
cause scratches and gouges which make leak paths. Use a plastic scraping tool to clean sealing surfaces.
NOTE: The bolts are part of the valve cover and cannot be removed.
Remove the RH valve cover.
^
Fully loosen the bolts and remove the valve cover.
^
Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the
packaging.
^
Discard the valve cover gasket. Clean the valve cover gasket groove with soap and water or a suitable solvent.
