E 250 V10-6.8L VIN S (2005)
Power Steering Pump: Service and Repair
Power Steering Pump Pulley Replacement
Power Steering Pump Pulley

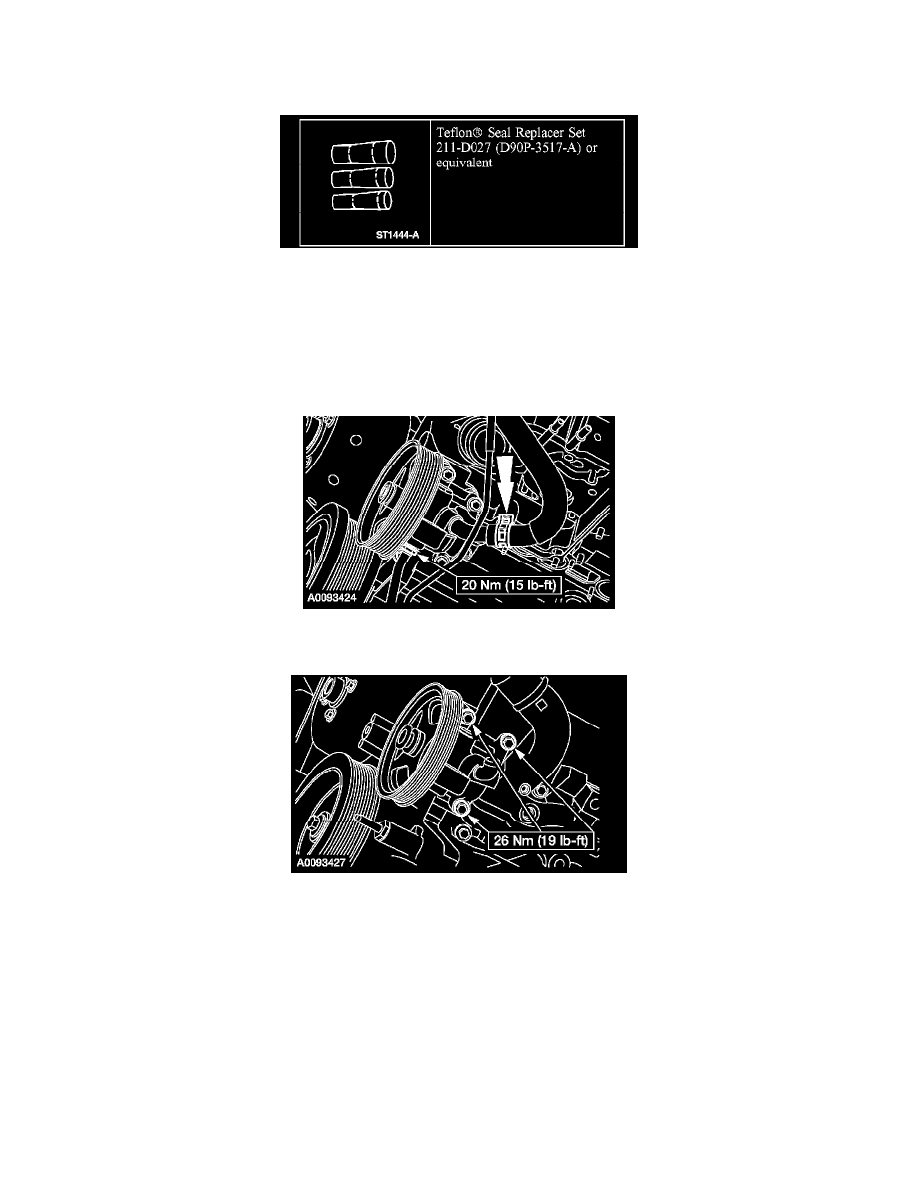

Special Tool(s)
Removal and Installation
Vehicles with 6.0L engine
1. Remove the engine cooling fan.
All vehicles
2. Rotate the tensioner clockwise and remove the belt from the power steering pump pulley.
3. With the vehicle in NEUTRAL, position it on a hoist.
4. If equipped, remove the deflector shield.
5. NOTE: Make sure to install the power steering pump pulley until it is flush with the power steering pump shaft. Inspect the belt alignment
following installation to ensure correct alignment and prevent intermittent belt noise.
Using the special tool, remove the pulley.
^
Inspect the pulley for paint marks in the web area near the hub. If there are 2 paint marks, install a new pulley. If there is no paint mark, use a
paint pencil to mark the web area of the pulley near the hub.
6. To install, reverse the removal procedure.
