E 250 V10-6.8L VIN S (2005)
1. Press the dust slinger on the coupling shaft.
2. NOTE: Install the bearing on the coupling shaft with the turned-in lip toward the dust slinger. Install the driveshaft center bearing bracket with
the deep flange facing rearward.
Install the driveshaft center bearing support on the coupling shaft.
1
Install the rubber insulator in the driveshaft center bearing bracket.
2
Using a suitable press, install the driveshaft center bearing support assembly on the coupling shaft.
3. Install the driveshaft center bearing retainer.

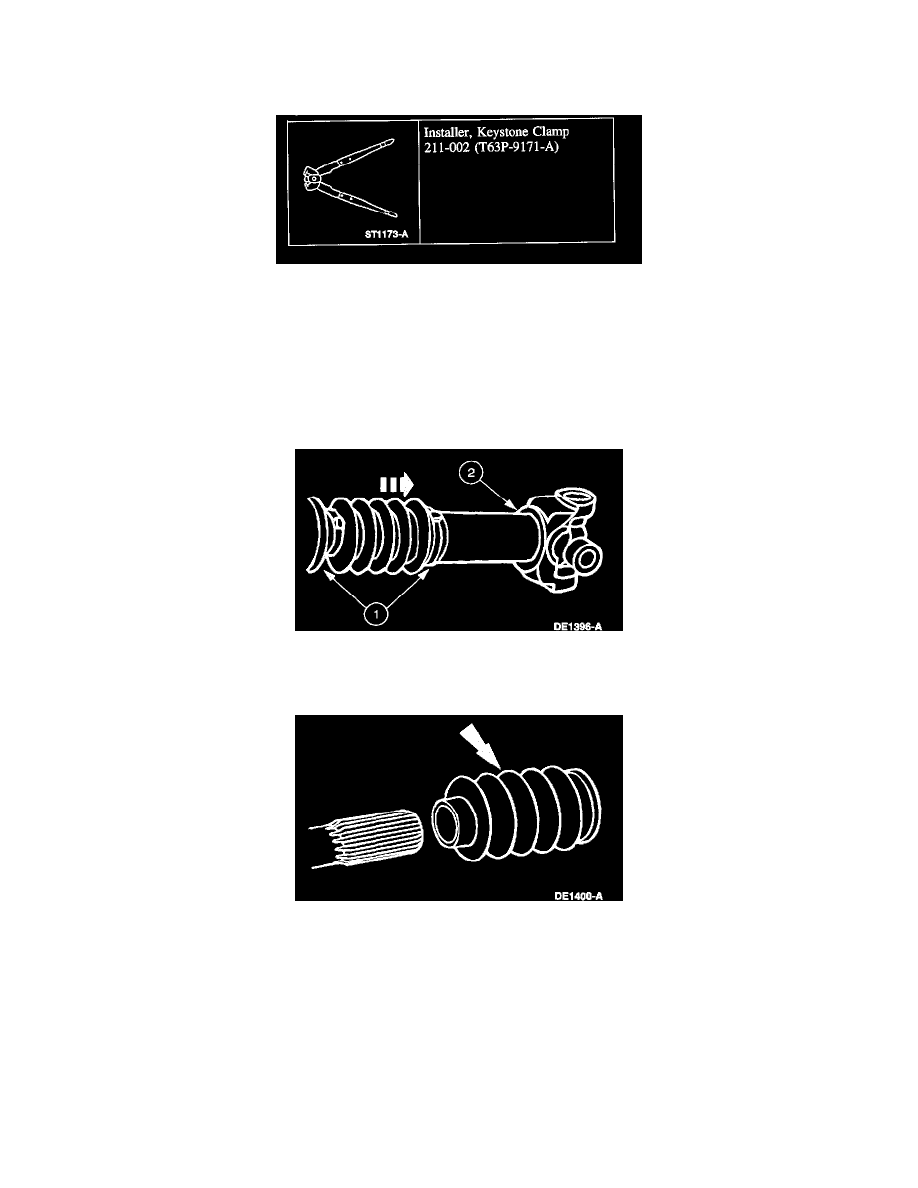

4. Position the driveshaft slip-yoke boot clamp on the coupling shaft stub shaft.
5. Slide the small opening end of the slip-yoke boot on the coupling shaft stub shaft, as far as it will travel.
