E 250 V10-6.8L VIN S (2005)

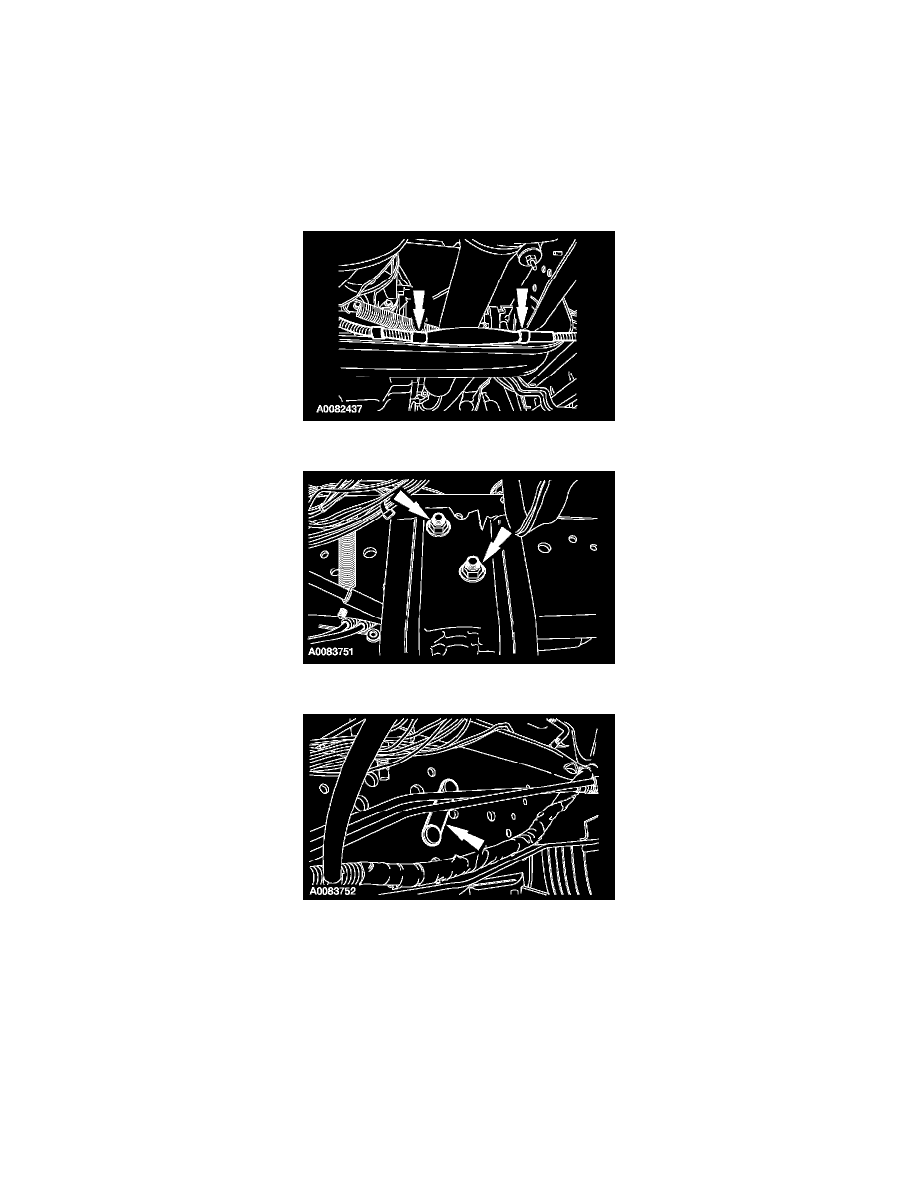

6. Remove the RH crossmember nuts.
7. Remove the RH crossmember bracket.
8. Lower the transmission enough to gain access to the turbine shaft speed (TSS) sensor and intermediate shaft speed sensor.
9. Disconnect the intermediate shaft and turbine shaft combination speed sensor electrical connector.
10. NOTE: Prior to removing the speed sensor, make sure that the area around the sensor is free of foreign material to prevent contamination of the
transmission.
Remove the intermediate shaft and turbine shaft combination speed sensor.
1. Remove the bolt.
2. Remove the intermediate shaft and turbine shaft combination speed sensor.
Installation
