E 250 V8-4.6L SOHC VIN W (2004)

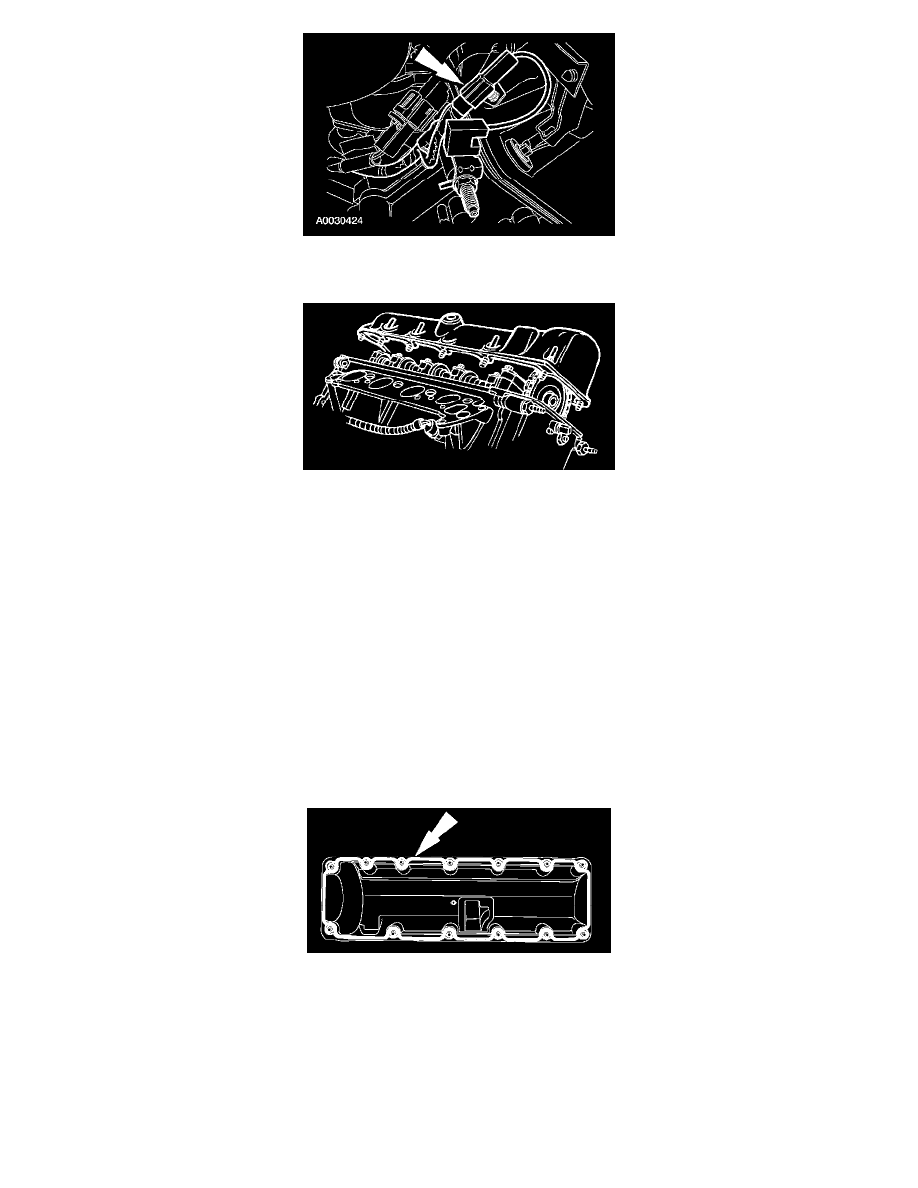

11. Disconnect the LH radio interference capacitor.
12. Position the engine control wiring harness off of the valve cover.
13. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces.
These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
NOTE: The intake manifold is removed for clarity.
NOTE: The bolts are part of the valve cover and should not be removed.
Remove the LH valve cover.
^
Fully loosen the bolts and remove the valve cover.
^
Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the
packaging.
^
Inspect the valve cover gasket. If the gasket is damaged, remove and discard the gasket. Clean the valve cover gasket groove with soap and
water or a suitable solvent.
Installation
All engines
1. If a new gasket is being installed, apply instant adhesive completely around the gasket groove in the valve cover. Install the new valve cover
gasket.
