Tachometer: Description and Operation

TACHOMETER

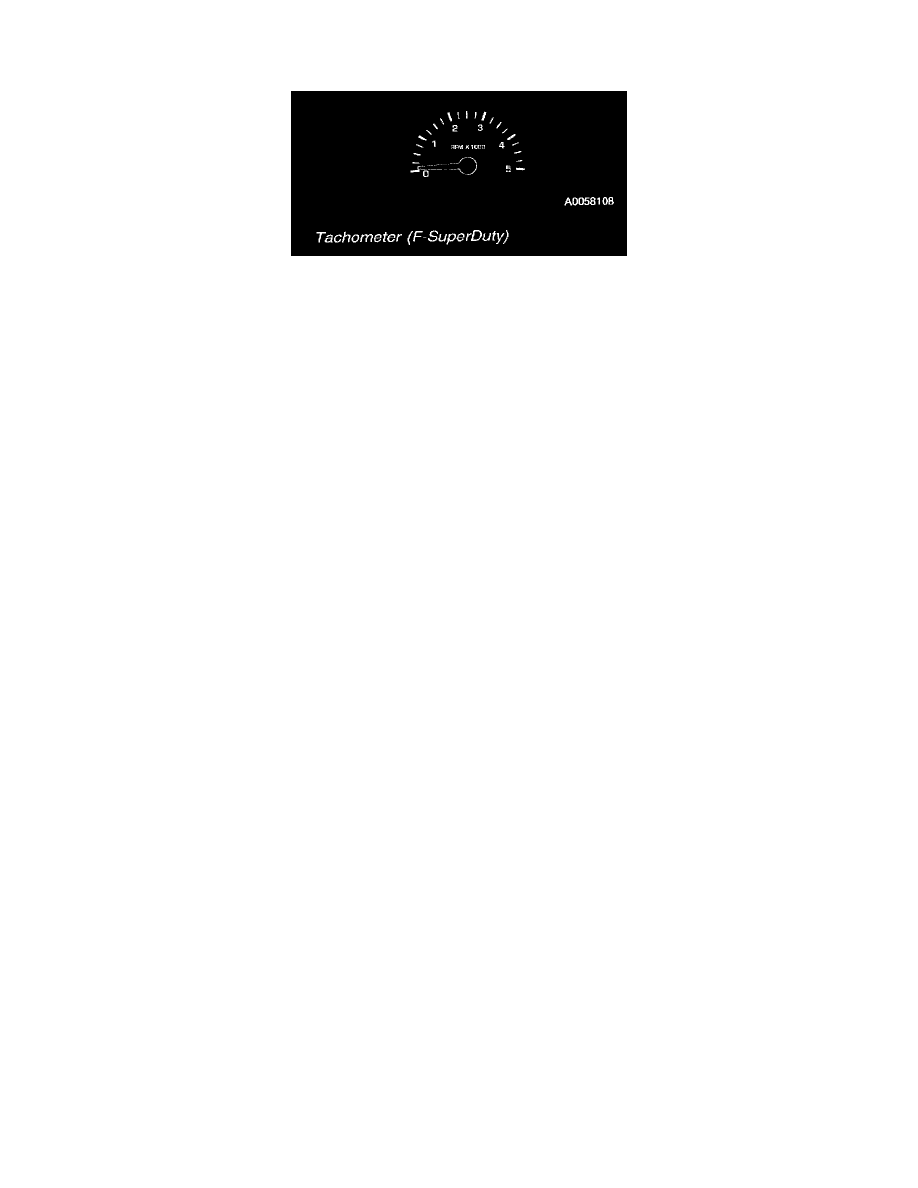

Tachometer (F-SuperDuty)

The tachometer is controlled by the instrument cluster. The PCM sends engine RPM data through the standard corporate protocol (SCP) communication
network to the instrument cluster.
