E 250 V8-4.6L SOHC VIN W (2004)
Alignment: Service and Repair
Toe Adjustment
Toe Adjustment

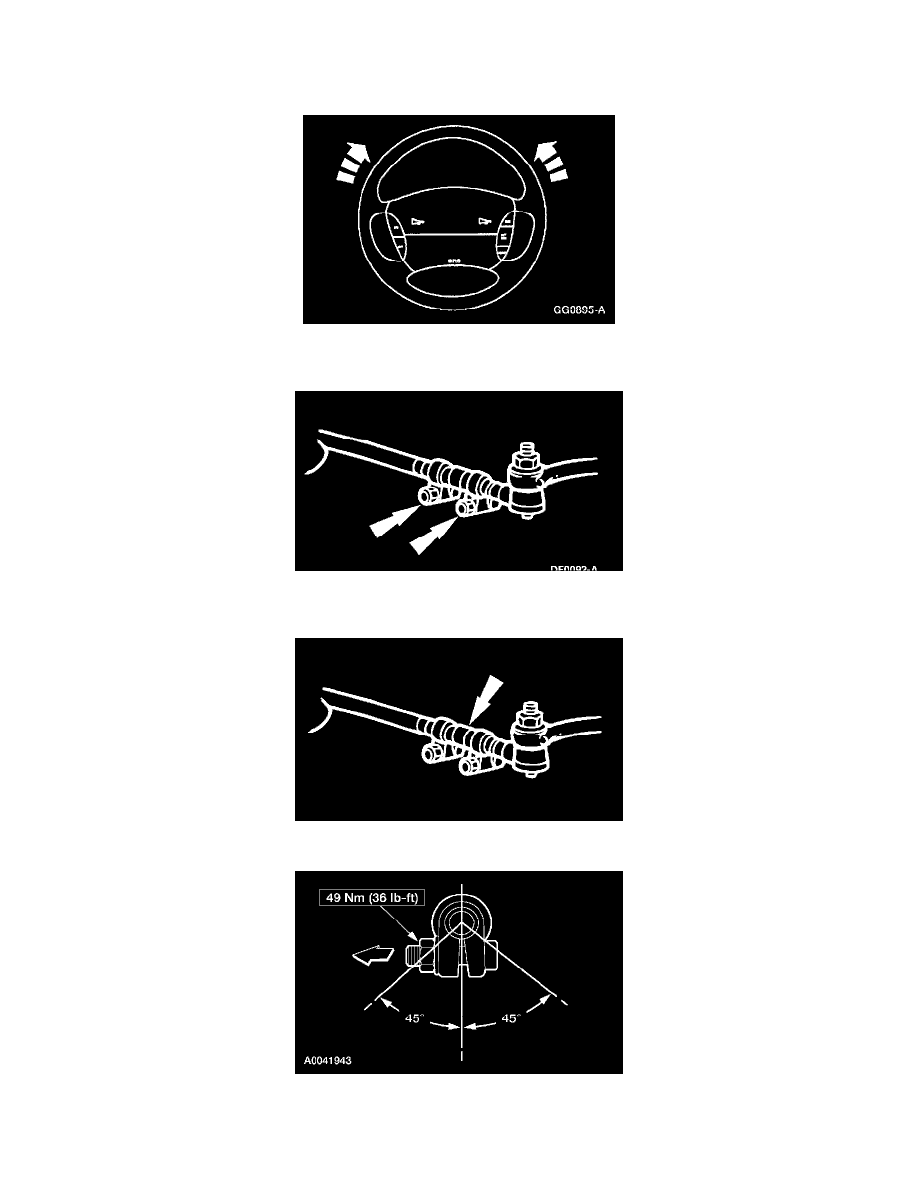

1. Start the engine and center the steering wheel.
2. Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
3. Loosen the nuts.
^
Clean and lubricate the steering linkage and tie rod end threads.
4. Rotate the adjusting sleeves to obtain the correct toe setting.
5. Position the RH adjusting sleeve clamp opening downward within 45 degrees of vertical. Tighten the nuts.
