E 250 V8-4.6L VIN W (2006)
Powertrain Management
Fuel Delivery and Air Induction
Intake Air Duct
Component Information
Service and Repair
Page 1

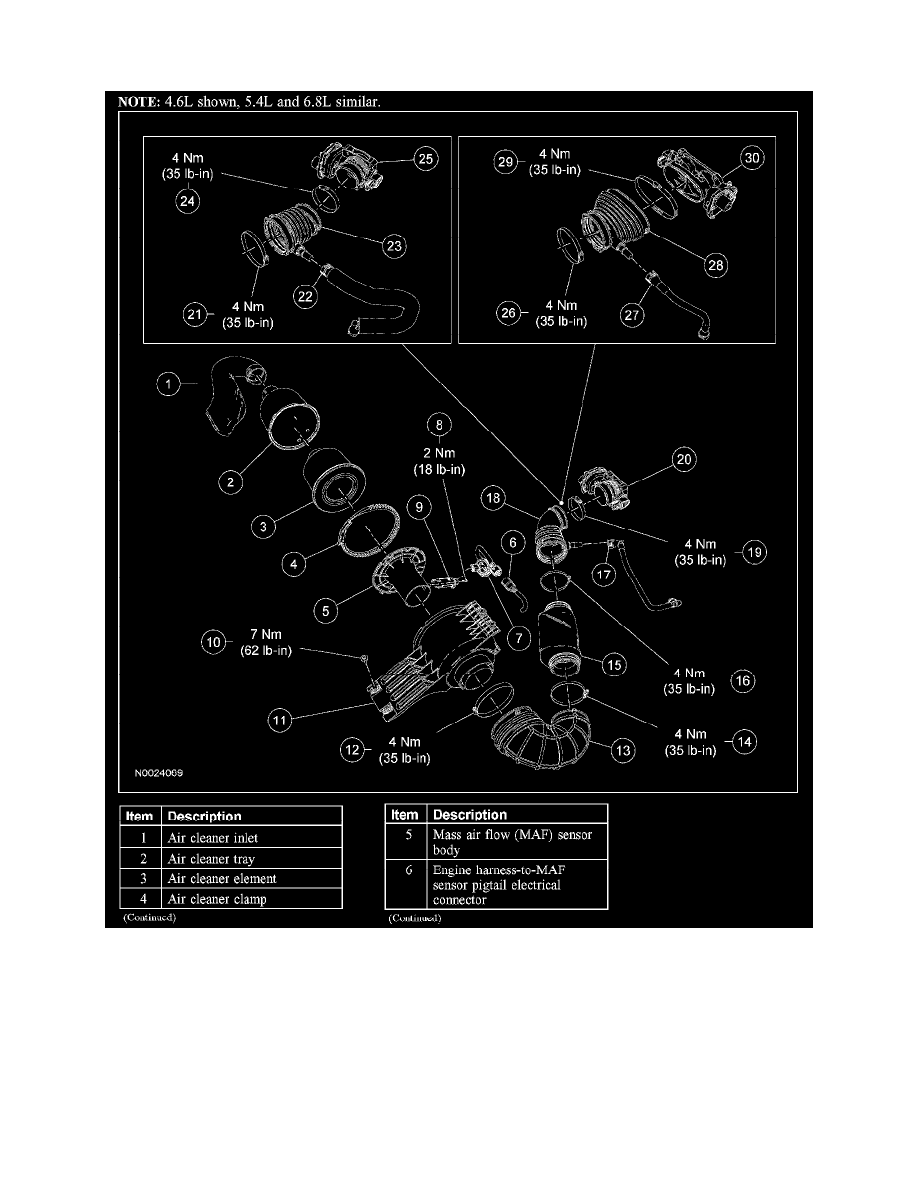

Intake Air Duct: Service and Repair
AIR CLEANER OUTLET PIPE
Part 1
