E 450 V10-6.8L (2008)
Installation

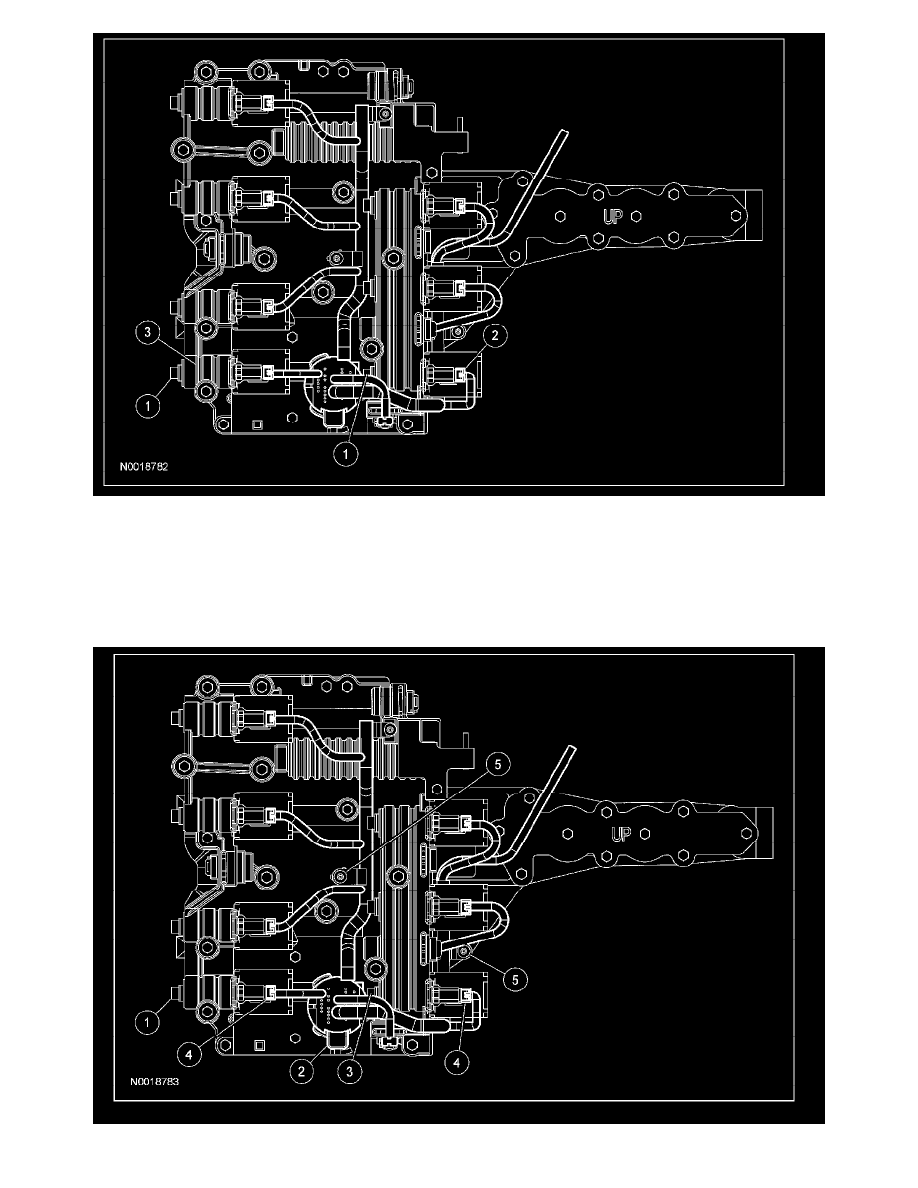

1. Assemble the main control valve body.
1) Install the pressure control solenoid (PC-A) and install the (E) retaining clip.
2) Push the bulkhead connector through the solenoid body and twist the bulkhead connector locking it into place
3) Install the shift solenoid (SSPC-C) back into place and install the (E) retaining clip.
4) Connect the electrical connectors to the pressure control solenoid (PC-A) and the shift solenoid (SSPC-C).
5) Install the wire harness to solenoid body and tighten the bolts.
