Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Brake Bleeding: Service and Repair
Brake Caliper Bleeding
1. Note: It is not necessary to do a complete brake system bleed if only the disc brake caliper was disconnected.

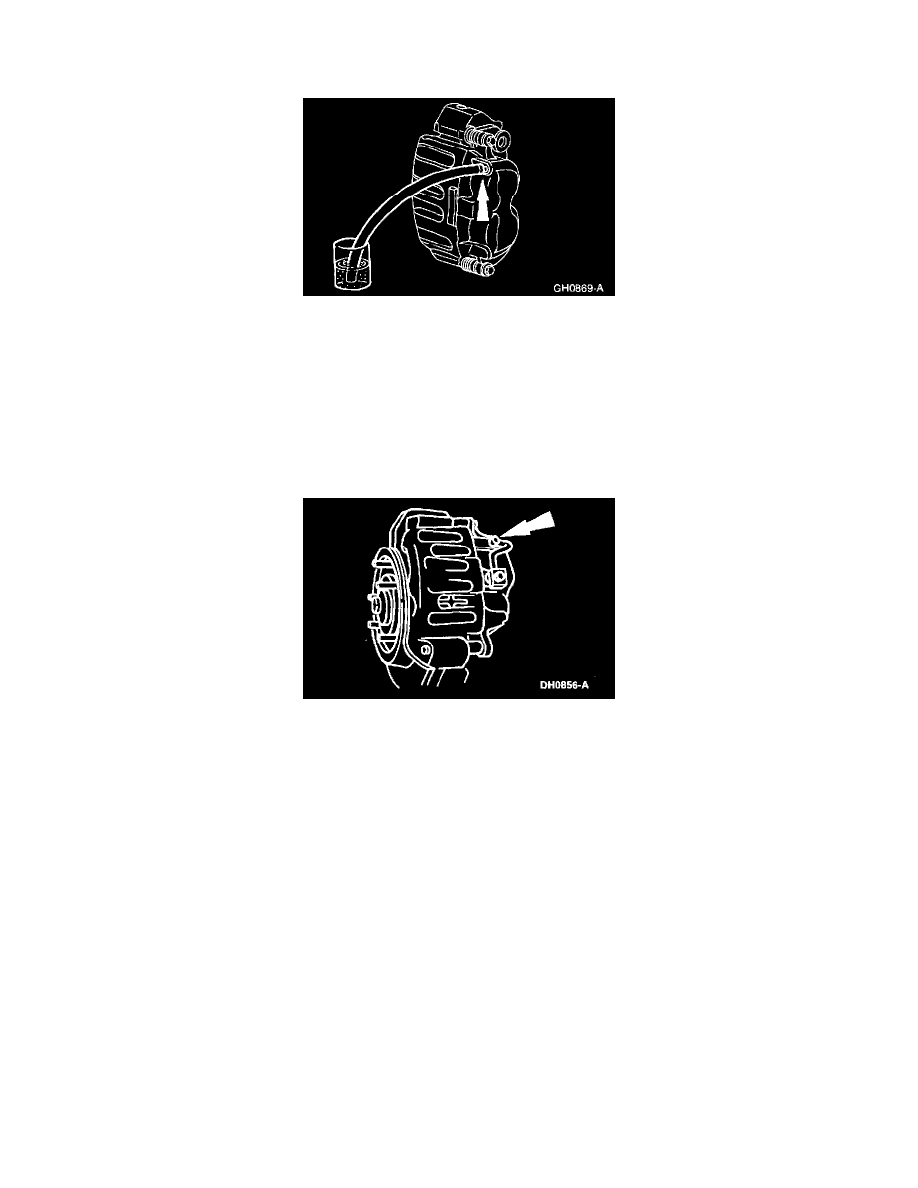

Place a box end wrench on the disc brake caliper bleeder screw. Attach a rubber drain tube to the disc brake caliper bleeder screw, and submerge
the free end of the tube in a container partially filled with clean brake fluid.
2. Have an assistant pump the brake pedal and then hold firm pressure on the brake pedal.
3. Loosen the disc brake caliper bleeder screw until a stream of brake fluid comes out. While the assistant maintains pressure on the brake pedal,
tighten the disc brake caliper bleeder screw.
-
Repeat until clear, bubble-free fluid comes out.
-
Refill the brake master cylinder reservoir as necessary.
4. Tighten the disc brake caliper bleeder screw. Refer to Specifications.
Brake System Manual Bleeding
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If
brake fluid contacts eyes, Hush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink
water and induce vomiting. Get medical attention immediately.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled
with the specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.
CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with
water.
Note: When an part of the hydraulic system has been disconnected for repair or installation of new components, air can get into the system and cause
spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be bled
manually or with pressure bleeding equipment.
1. Connect the scan tool DCL cable adapter into the vehicle Data Link Connector (DLC) under the dash and follow the scan tool instructions.
