Page 2
background image

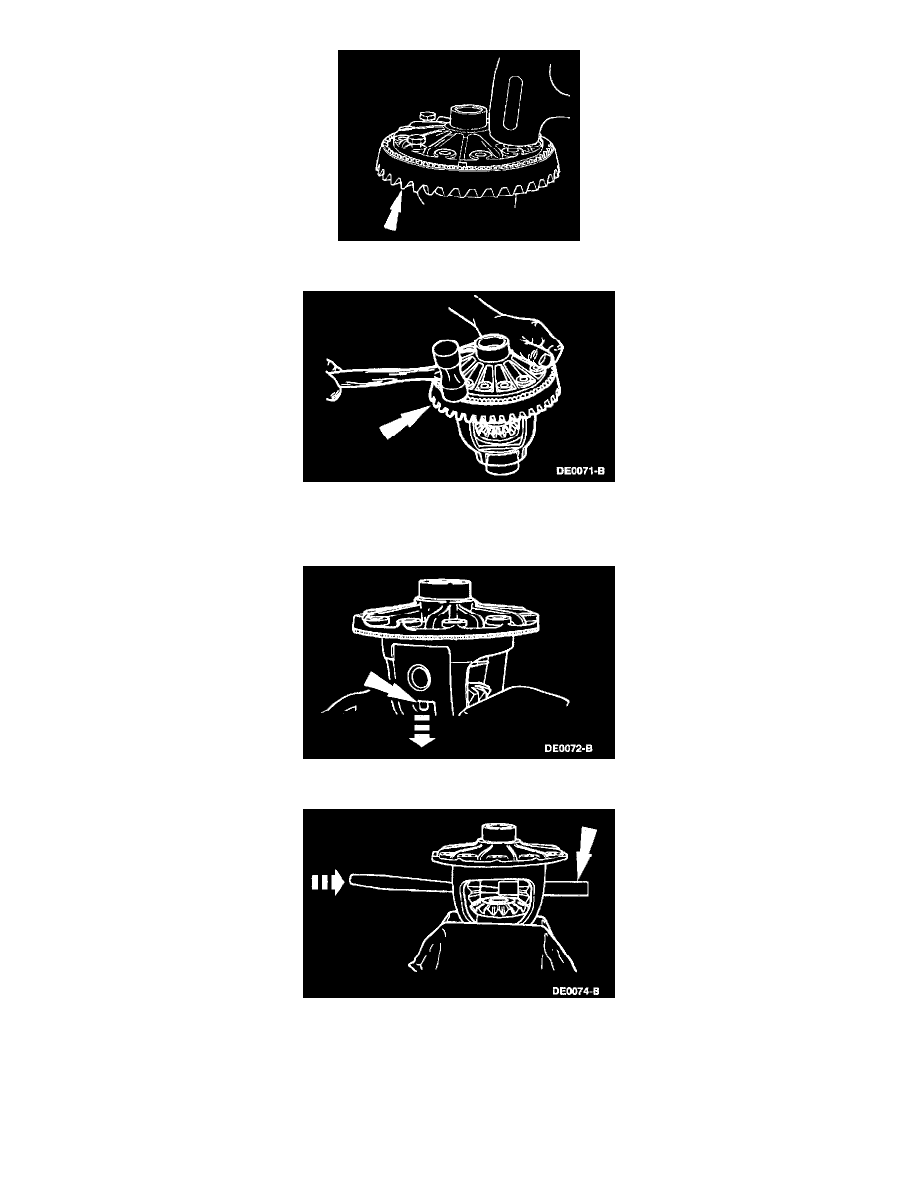

4. Tap each bolt head alternately with a rawhide or plastic hammer to loosen the ring gear. Remove the bolts and the ring gear.

5. If required, remove the anti-lock speed sensor ring with a soft-faced hammer. Discard the anti-lock speed sensor ring.

6. NOTE:  Use a vise with brass jaws or wood blocks.

Place the differential case in a vise. Using a small drift, drive out the differential pinion shaft lock pin that secures the differential pinion shaft.

7. Using a drift, remove the differential pinion shaft.
