Econoline E350 1 Ton V8-5.4L SOHC VIN L (1999)
radial lines (Grade 9) stamped on them, tighten the differential case bolts to the appropriate specification.
6. If the assembly has been correctly assembled, each differential pinion shaft should be tight on its ramp. If there is clearance between the
differential pinion shaft and the ramp, it must be not more than 0.254 mm (0.010 inch) and equal at all four ends of the differential pinion shafts.

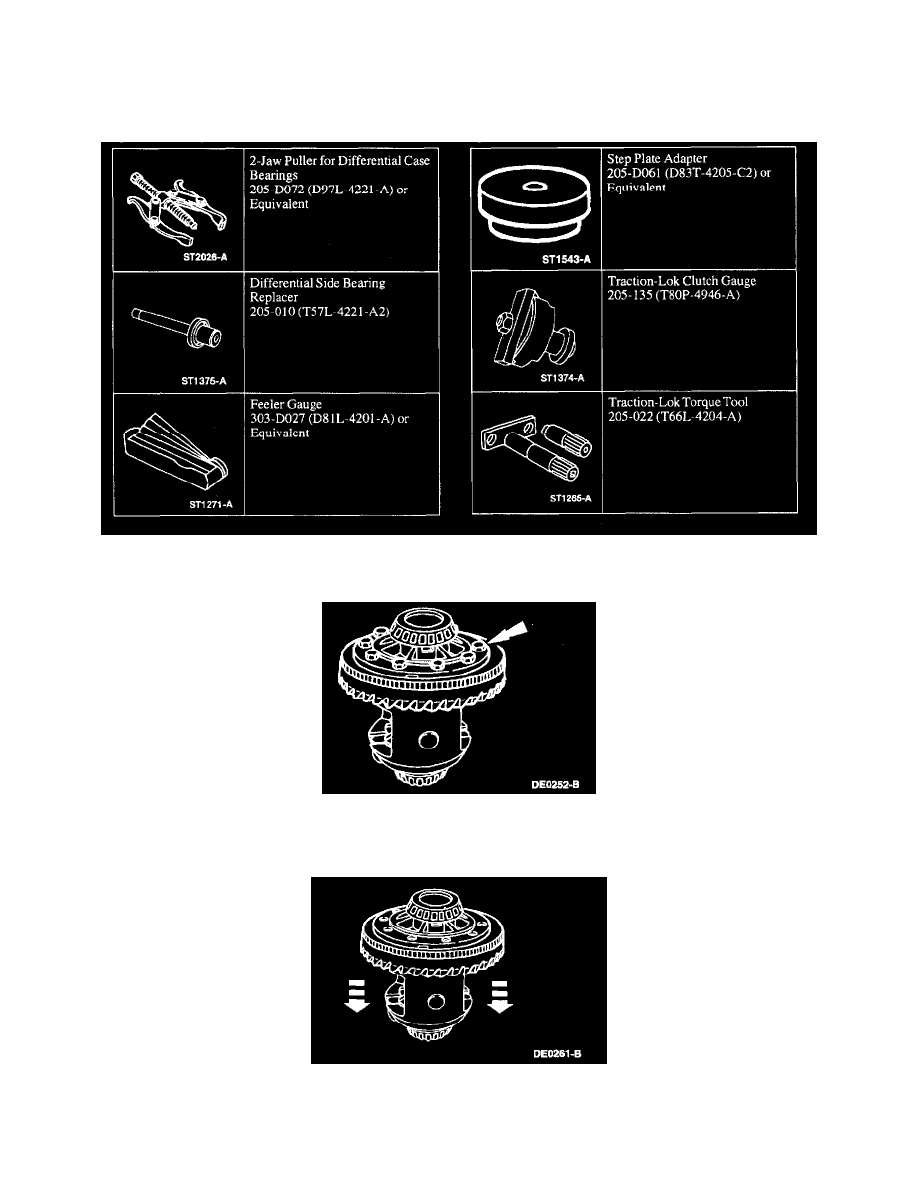

8.8 Inch Ring Gear - Ford
Disassembly
1. Remove the differential case.
2. Remove the 10 ring gear bolts.
3. CAUTION: Care should be taken not to damage the bolt hole threads.
Insert a punch in the bolt holes and drive the ring gear off.
4. NOTE: The anti-lock speed sensor ring cannot be reused once removed.
