Econoline E350 1 Ton V8-5.4L SOHC VIN L (1999)
Seals and Gaskets: Service and Repair
Dana

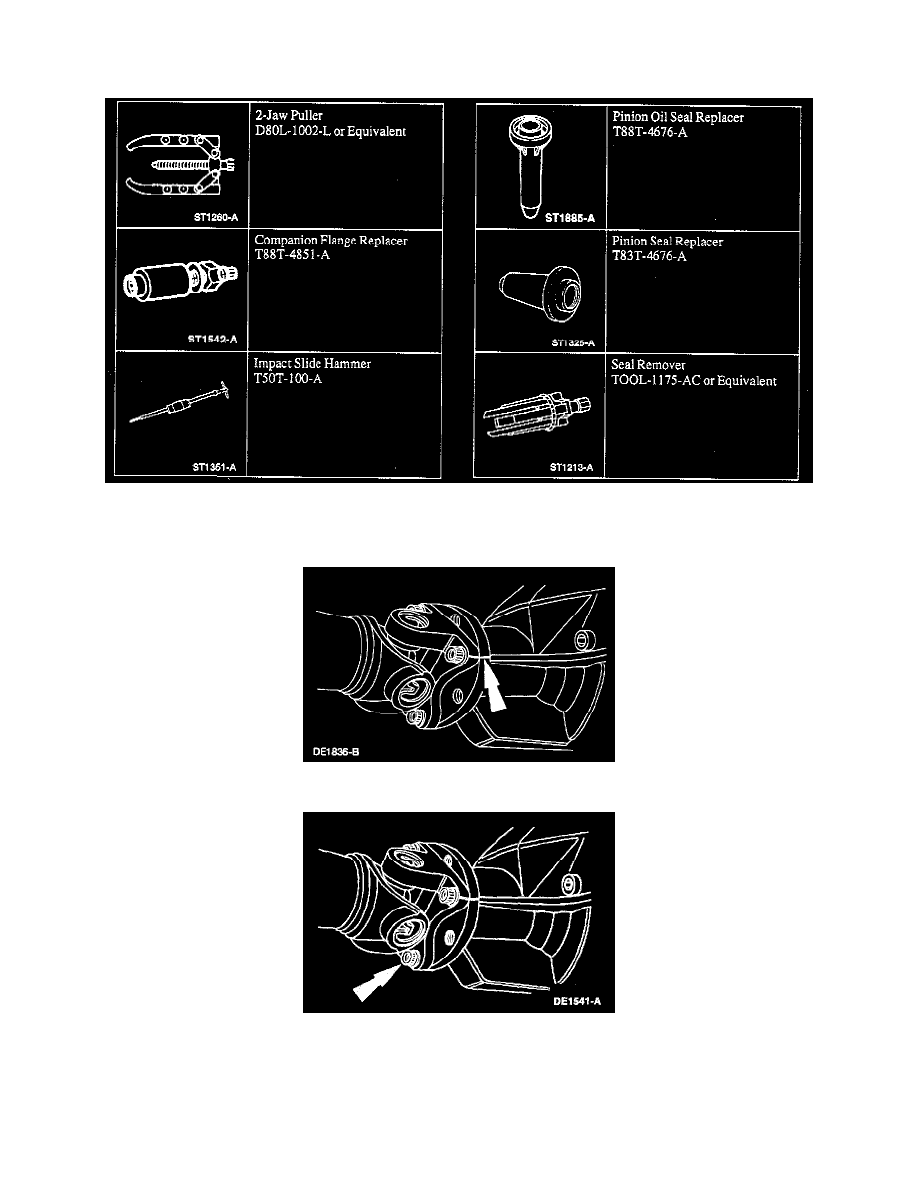

Removal
1. Raise the vehicle on a hoist or raise the rear end of the vehicle with a jack. Install safety stands under the frame rails and lower the jack or hoist far
enough to allow the rear axle to drop into the rebound position for working clearance.
2. Index-mark the driveshaft to the pinion flange.
3. Remove the driveshaft-to-pinion flange bolts.
4. Disconnect the driveshaft from the pinion flange. Support the driveshaft to the frame using mechanics wire.
5. NOTE: Index-mark the pinion flange to the pinion shaft.
