Escape 4WD L4-2.5L (2010)
Flywheel: Specifications

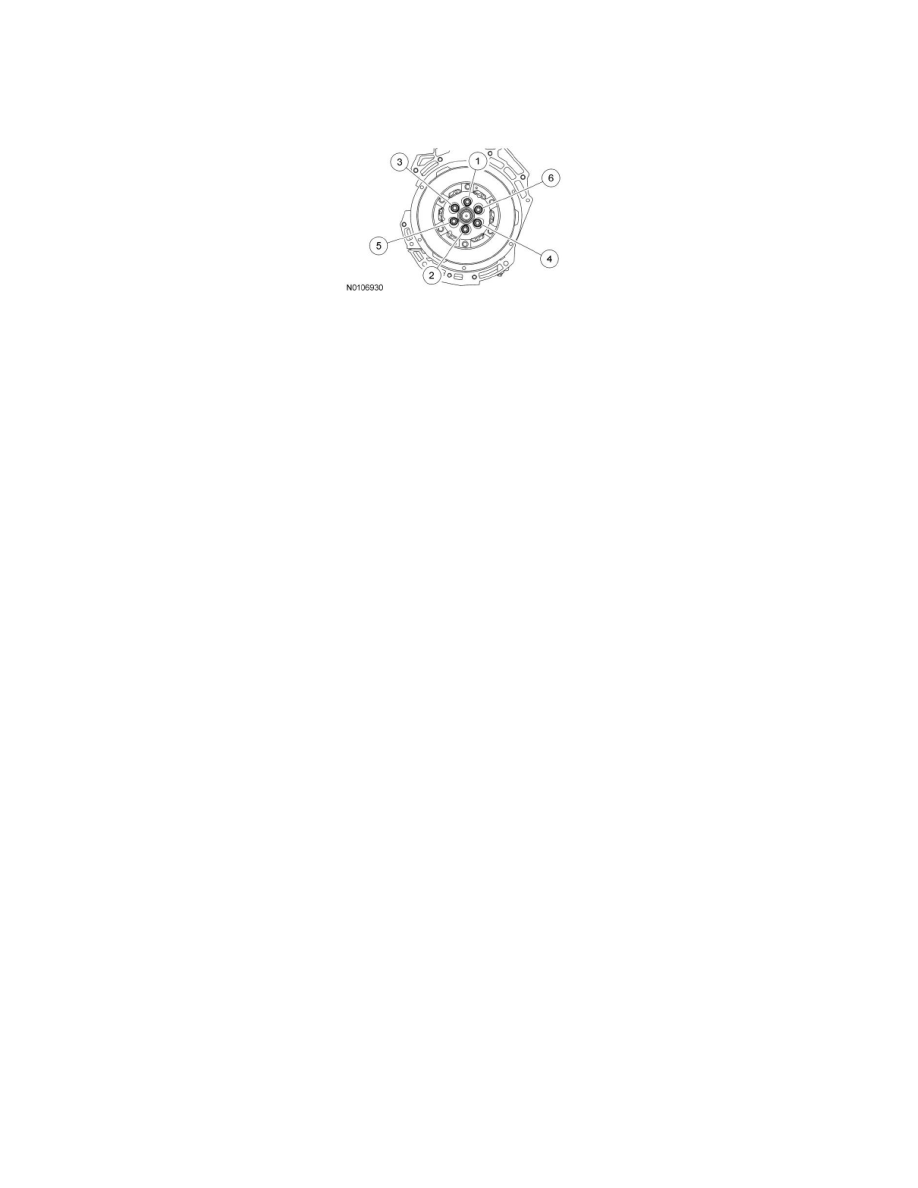

Install the flywheel and tighten the bolts in the sequence shown in 3 stages.
Stage 1: Tighten to.........................................................................................................................................................................................50 Nm (37 lb-ft).
Stage 2: Tighten to.........................................................................................................................................................................................80 Nm (59 lb-ft).
Stage 3: Tighten to.......................................................................................................................................................................................112 Nm (83 lb-ft).
