Powertrain Control Module: Locations

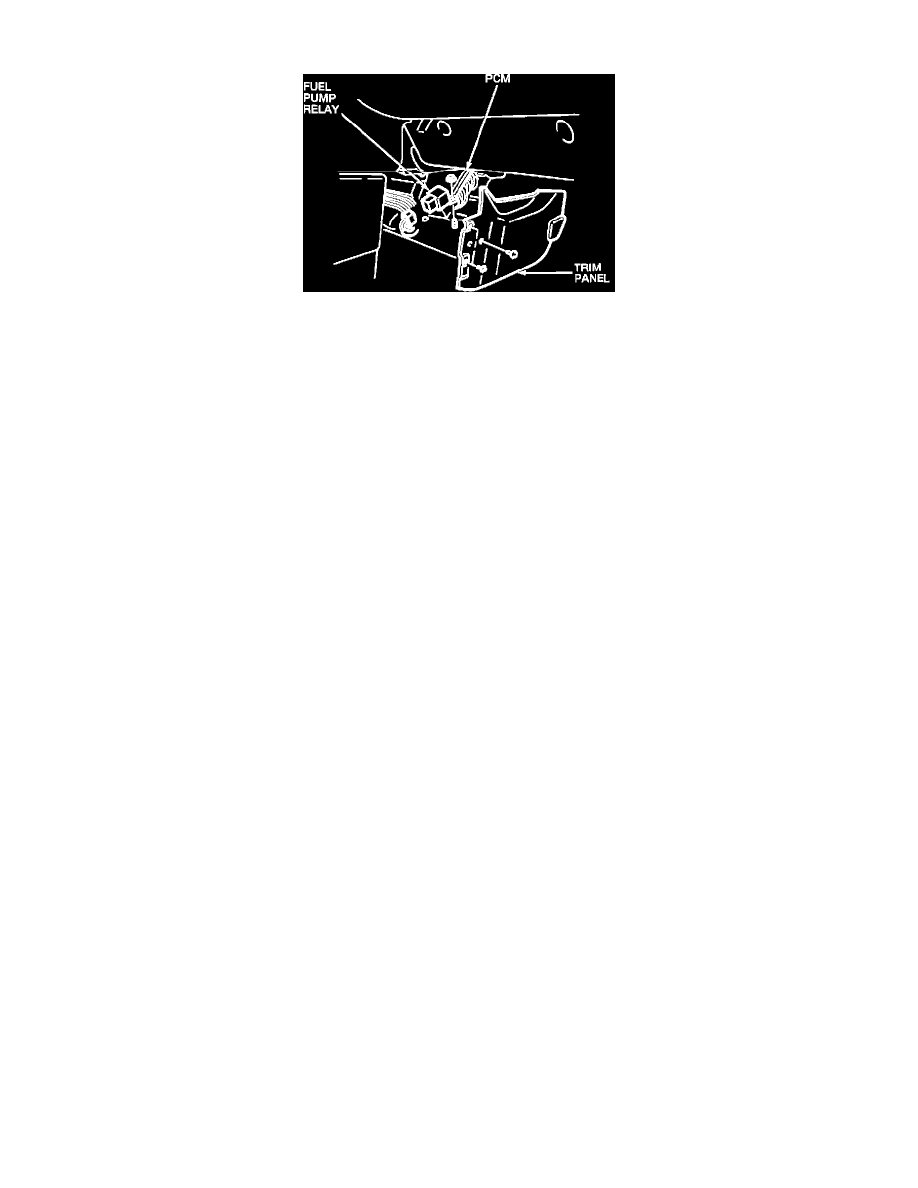

Fuel Pump Relay And PCM

The Powertrain Control Module (PCM) is located under the center of the instrument panel.
