Escort L4-122 2.0L SOHC VIN P SFI (1999)
SPECIAL TOOL(S)

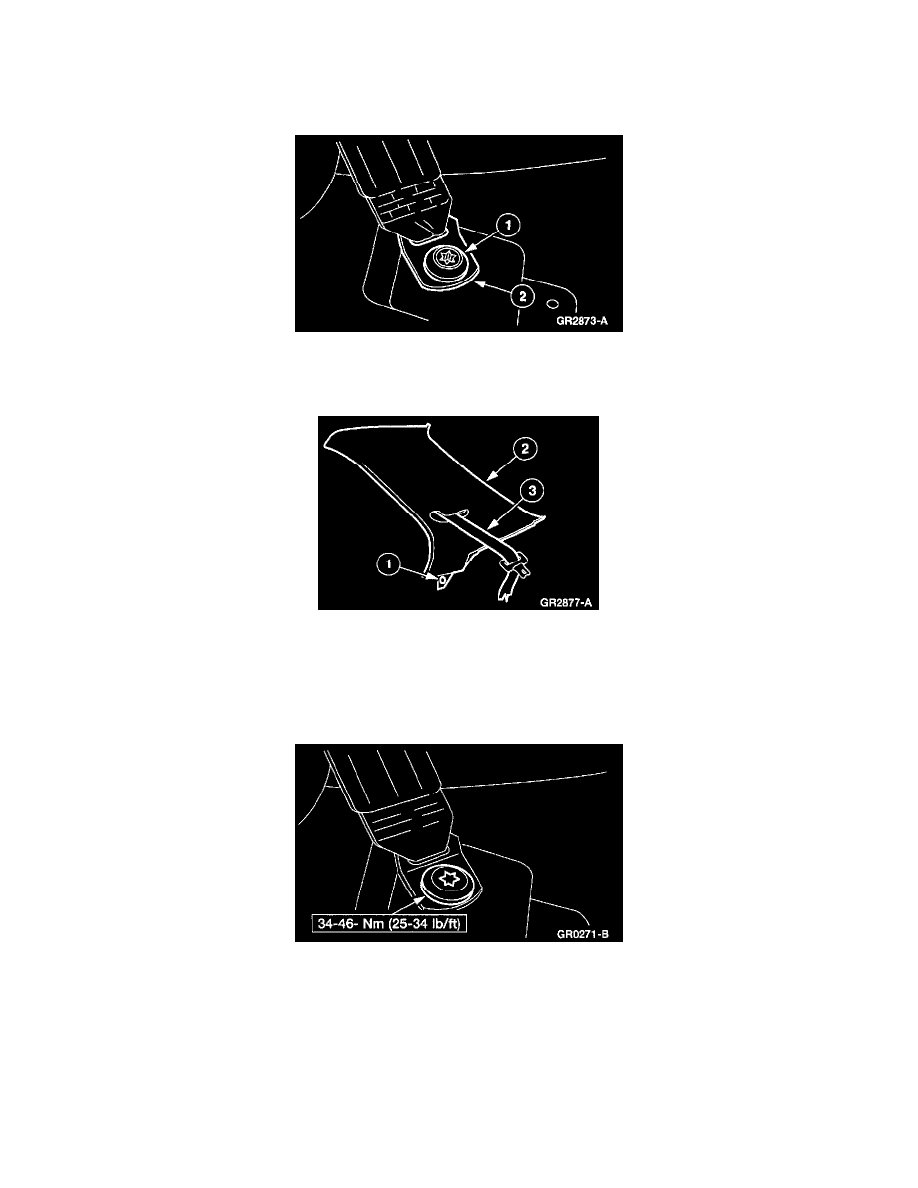

REMOVAL
1. Remove the quarter trim panel.
2. Disconnect the rear seat safety belt floor anchor bracket.
1
Use Safety Belt Bolt Bit to remove the bolt.
2
Disconnect the rear seat safety belt floor anchor bracket.
3. Remove the quarter window trim panel.
1
Remove the pushpin.
2
Remove the quarter window trim panel.
3
Feed the safety belt webbing through the slot in the panel.
INSTALLATION
1. To install, reverse the removal procedure.
Wagon
